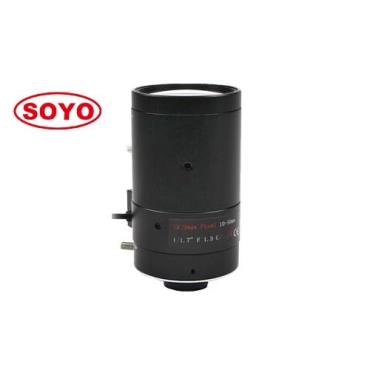

1/1.7" 10-50mm 12 Megapixel Varifocal Lenses F1.3 DC Auto iris C Mount CCTV Lens Security Camera Optics Safe City ITS Exit / Entrance IR China Optics 远距离视频监控、道路交通、人脸识别用镜头

PDF Download : SVD1050MIR-12M

High resolution: 12 megapixel high resolution covering 4K, 1080P

Long focal length: 10-50mm long focal length

Big aperture: F1.3 support dark vision

Large format: 1/1.7" can cover all 1/1.8"

IR correction: Day & night 24h surveillance

Application: Surveilance, ITS, LPR, face recognition.

Model 型号SVD1050MIR-12M

Resolution 像素12 Megapixel

IR Correction 日夜IR

Format 靶面1/1.7"

Focal Length焦距10-50mm

Aperture (Close/360) 光圈F1.3 DC Iris

Angle of View (°)DxHxV 视场角

1/1.7"W 48.6*41.8*23.3 | T 11.7*10*5.7

1/1.8"W 44.8*38.6*21.4 | 10.8*9.4*5.3

Optical Distortion 光学畸变-9.95% ~ -1.29%

CRA 主光线夹角4.1°(1/1.2"); 4.5°(1/1.8")

M.O.D最近物距W 0.5~1.5m T

Dimension 尺寸Φ50.2*92mm

M.B.L 机械后焦7.25mm

Mount 接口C

Weight重量334g

Marks备注-20°~+70°; 430~950nm
