SWIR Short Wavelength IR Lens Covering 900~1700nm Which Can Use For Electronic Inspection, Semiconductor, Biometric Imaging, Military That Has Complex Foggy Enviroment

25mm 1.1" 20MP Megapixel Lenses 800~1700nm Machine Vision Lens 0.005x~0.221x <0.1% Low Distortion FA Industrial Automation Color Sort Recognition China Camera Optics Lentz

短波红外800~1700nm纳米镜头2000万像素1.1英寸25mm低畸变0.1%倍率0.005~0.221

High resolution : 20 megapixel cover all 8K & 4K

Large format: 1.1" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera

Low distortion : <0.1% low distortion use machine vision

Magnification : 0.005x ~ 0.221x

Illumimation : 45%

Wavelength : 900~1700nm

Application : Automation, machine vision, medical, life science, ITS, SMT, AOI

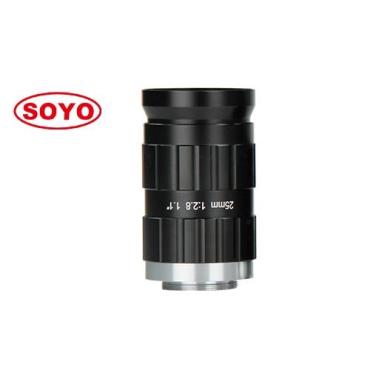

Model S11WIR2528-20M

Resolution 20 Megapixel

Format 1.1"

Focal Length 25mm

B.F.L 22.4mm

Aperture (Close) F2.8 Manual Iris

Angle of View (°)

FOV 1.1" 38*30.4*23

1" 35*28*21

2/3" 24*19.2*15

M.O.D 0.1m

Distortion <0.1%

Filter size M35.5*P0.5

Size Φ37*82mm

Mount C

Marks Wavelength 800~1700nm ; 235g
