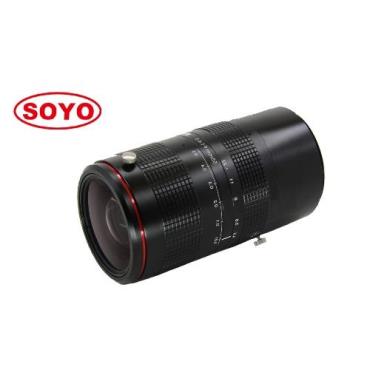

150 Megapixel Lenses 3.5μm E.F.L 55mm Φ67 < 0.01% Low Distortion FA Machine Vision Factory Automation Positioning Measurement China Camera Optical Line Scan Lens

High resolution : 3.5μm 150 Megapixel

Large format: Φ67

Magnification : 0.5x ~ 0.01x

Low distortion : Low distortion 0.01% for measurement and vision

Application : Automation, machine vision, medical, life science, measurement.

Model 型 号 SLS5515M72-150M ( Download )

Magnification(x)

0.5x 0.4x 0.3x 0.2x 0.1x 0.01x

W.D 工作距 97.55mm 128.3mm 179.1mm 280.6mm 585.9mm 6074mm

Resolution 3.5μm

Distortion 畸变 0.01%

Angle of view ° 29°

Max format φ67

E.F.L 焦距 55mm

Aperture 光圈 F4.5~22

Mount 接口 M72*P0.75

Dimension 尺寸 Φ79.2*69.3mm

(cctv lenses, megapixel lenses, varifocal lenses,camera lenses,machine vision lenses, motorized zoom lenses, fisheye lenses, FA lenses, industrial lenses, M12 lenses, board lenses, color sorting lenses, MTV lenses, mono-focal lenses,fixed lenses,lentz, non-distortion lenses,video conference lenses, intercom lenses, pinhole lenses, telecentric lenses, macro lenes,manual iris lenses,відэаназірання лінзы, мегапіксэльныя аб'ектывы,soczewki cctv, obiektywy megapikselowe,CCTV-Objektive, Megapixel-Objektive,линзы cctv, мегапиксельные линзы,lentilles cctv, lentilles mégapixels,CCTV 렌즈, 메가 픽셀 렌즈,kanta cctv, kanta megapixel,CCTVレンズ、メガピクセルレンズ,เลนส์ cctv, เลนส์ล้านพิกเซล,cctv lensler, megapiksel lensler,עדשות cctv, φακοί CCTV, φακοί megapixel,cctv lencsék, megapixeles lencsék,obiettivi cctv,obiettivi megapixel,lensa cctv,lensa megapiksel,ống kính cctv,ống kính megapixel )

Cell： 86-18949838193 Email： fany@soyocctv.com Line/Skype/wechat： soyocctv
