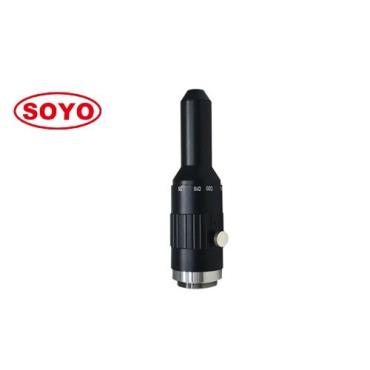

SRV3652 Innerwall 360° Degree Barrel Surface Inspection 3.0Megapixel FA Lenses 2/3" Round View Imaging Camera Optics High Resolution Compact Object Lens For Pharmacy Cosmetic Alcohol ( 360度内壁检测镜头）

* 360°inner barrel inspection 360度内壁管检测

* High resolution & compact size 高像素紧凑尺寸

* Inspect small size object at wide sight 大视野范围内检测小尺寸物体

* Application for tube, auto, container, bottle cap inside inspection 管类,发动机,瓶罐内壁

Format 靶面 SRV3652 ( 2/3" )

Resolution 像素 3.0 Megapixel

Image circle 场高 Φ6.6mm

FOV Dia*Height 2/3"

Standard 20*23mm ( Min.5*5 / Max.120*123 ) 景深

Wavelength 波长 450~650nm

Diamension 尺寸 Φ33.6*113.6mm

Mount 接口 C

Diameter (mm) 直径 Height (mm) 高度 Working Distance (mm) 工作距

5 5 2.7

10 10 6

20 21 11

30 31 17.2

40 41 23

50 51.2 29

60 61.4 35

80 82 46.5

100 102 58.3

120 123 70
