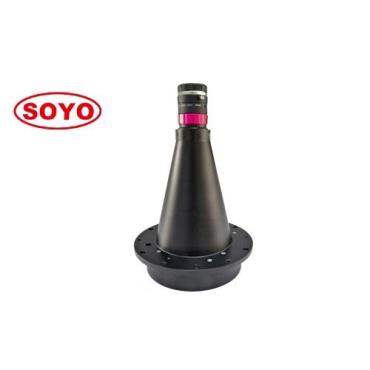

1.1” 360° Degree Outer View Outwall Surface Multi-angle Imaging FA Lenses Automation Round View Industrial Inspection Camera Lens China Panoramic Optics

1. Working Distance 3-40mm 工作距

2. Side testing for 1-10mm tiny part 可检测1-10mm超小物体

3. Same optical magnification at any visual side 任何角度倍率不变

4. Perfect matching all industrial camera 完美搭配市面全部工业相机

Model 型号 SOD11FA35

Format 靶面 1.1"

MTF 数据 126lp/mm

W.D 工作距 3~40mm

Aperture 光圈 F2.8~25

Size 尺寸 Φ140*229.3mm

Wavelength 波长 400~680nm

Mount 接口 C

Illuminator voltage 光源电压 DC 24V

Power 功率 18W

Height 高度 20mm 10mm 5mm

Max Object FOV Dia. (side) 30mm / 72mm

Max Object FOV Dia. (Side+Top) / 30mm /

Marks 说明 FA type ( Telecentric type is SODMV1 )
