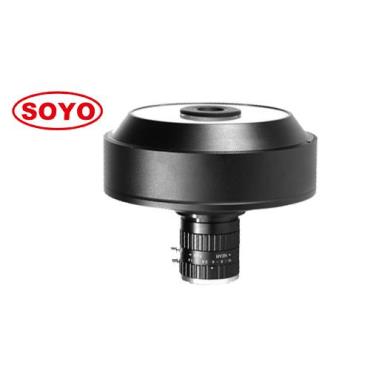

5 Models 360° Outwall Outer Surface Imaging Megapixel Lenses Low Distortion Industrial Camera CCTV Lens Pharmacy Factory Automation Machine Vision China Optics ( 360度外壁检测镜头 ）

* Outwall surface imaging 外壁360度成像

* Varity of format / sensor size 2/3”，1/1.8", 1/3" 多靶面

* High resolution 5.0megapixel 500万高像素

* Short Working distance 短物距

* Application : pharmacy, bottle, tube etc. 用于医药类、瓶装类，管类外壁

Model Resolution Format Image Circle Aperture W.D (mm) FOV Mount

SOD3601 5MP 1/3" Φ3.6mm F6.0-16 19-46.2 7.5*5.2 min C

30*25 max

SOD3605 5MP 1/3" Φ3.6mm F6.0-16 9-46.52 7.5*6.4 min C

30*25.6 max

SOD3602 5MP 1/1.8" Φ5.32mm F8.0-16 9-45.4 7.5*5.3 min C

30*25 max

SOD3603 5MP 2/3" Φ6.6mm F8.0-16 14-48.2 7.5*4 min C

30*23.4 max

Model SOD3601

Sensor 1/3"

Image circle Φ3.6

W.D 19-46.2mm

Aperture F6.0~16

Diameter(mm) Height (mm) WD(mm) FNo.

7.5 4.6 46.2 16

10 6.8 42.2 12

15 10.9 34.5 10

20 15.3 26.9 8

25 19.54 19 6

30

Model SOD3602

Sensor 1/1.8"

Image circle Φ5.32

W.D 9-45.4mm

Aperture F8.0~16

Diameter(mm) Height (mm) WD(mm) FNo.

7.5 5.3 45.4 16

10 7.7 41.5 16

15 11.86 33.8 12

20 16.5 26.2 12

25 20.7 18.5 10

30 25 9 8

Model SOD3603

Sensor 2/3"

Image circle Φ6.6

W.D 14-48.2mm

Aperture F8.0~16

Diameter(mm) Height (mm) WD(mm) FNo.

7.5 4 48.2 16

10 6.3 44.4 16

15 10.6 36.8 12

20 14.6 29.2 12

25 19.2 21.6 10

30 23.4 14 8

23.4 14 8

Model SOD3604

Model SOD3605
