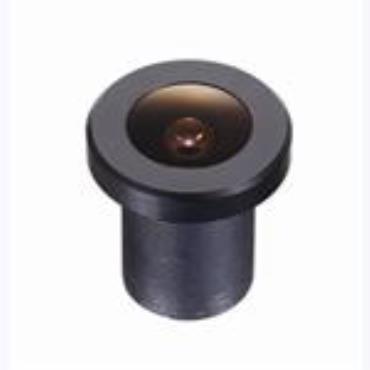

Image Sensor Format (mm) 1/2.5"

Image Sensor Pixel Size (μm)

E. F. L (mm) 6mm

B. F . L . (mm) 8.1mm

Mechanical B.F.L (mm) 6.7mm

Iris Fixed

F No. 1:2.4

Field Of View (Deg) Horizontal 52.8°

Vertical 39.6°

Diagonal 66°

Resolution MTF On Axis

70% field (H=4.4)

IR correction

Object Distance (mm) ∞-0.3mm

Optical Distortion (TV Distortion) -20%

Mount M12

Working Temperature .-20°C - 60°C

Dimension Size Φ14×17.2mm

Weight (g) 5g

Board Lens List

*1.3 MP

PVB2812FIR-M 1/2.7" 2.8-12 mm F2.0 Fixed IR M12

PB0820IR-M 1/2.7" 8 mm F2.0 Fixed IR M12

PB0620IR-M 1/2.7" 6 mm F2.0 Fixed IR M12

PB0420IR-M 1/2.7" 4 mm F2.0 Fixed IR M12

*2.0 MP

PVB2812FIR-2M 1/2.7" 2.8-12 mm F2.0 Fixed IR M12

PB0820IR-2M 1/2.7" 8 mm F2.0 Fixed IR M12

PB0620IR-2M 1/2.7" 6 mm F2.0 Fixed IR M12

PB0420IR-2M 1/2.7" 4 mm F2.0 Fixed IR M12

3.0 MP PVB2812FIR-3M 1/2.7" 2.8-12 mm F2.0 Fixed IR M12

PB0820IR-3M 1/2.7" 8 mm F2.0 Fixed IR M12

PB0620IR-3M 1/2.7" 6 mm F2.0 Fixed IR M12

PB0420IR-3M 1/2.7" 4 mm F2.0 Fixed IR M12

*5.0 MP

PVB2812FIR-5M 1/2.7" 2.8-12 mm F2.0 Fixed IR M12

* Ecnomical

"3.0 MP MF Series"

PVB2812IR-MF 1/2.7" 2.8-12 mm F1.8 Fixed IR M12/Φ14

PVB2812DIR-MF 1/2.7" 2.8-12 mm F1.8 DC IR Φ14

PVB2812DICR-MF 1/2.7" 2.8-12 mm F1.8 DC IR-CUT Φ14

"3.0 MP EX series"

PVB2812IR-FEX 1/2.7" 2.8-12 mm F1.4 Fixed IR M12/Φ14

PVB2812ICR-FEX 1/2.7" 2.8-12 mm F1.4 Fixed IR-CUT M12/Φ14

PVB2812DIR-FEX 1/2.7" 2.8-12 mm F1.4 DC IR M12/Φ14

PVB2812DICR-FEX 1/2.7" 2.8-12 mm F1.4 DC IR-CUT M12/Φ14

*3.0 MP

TT2826-3M 1/2.7" 2.8mm F2.6 Fixed IR M12

TT3626-3M 1/2.7" 3.6mm F2.6 Fixed IR M12

TT0426-3M 1/2.7" 4mm F2.6 Fixed IR M12

TT0624-3M 1/2.7" 6mm F2.4 Fixed IR M12

TT0824-3M 1/2.7" 8mm F2.4 Fixed IR M12

"Megapixel TY"

TT2825-M 1/3" 2.8mm F2.5 Fixed IR M12

TT3622-M 1/3" 3.6mm F2.2 Fixed IR M12
