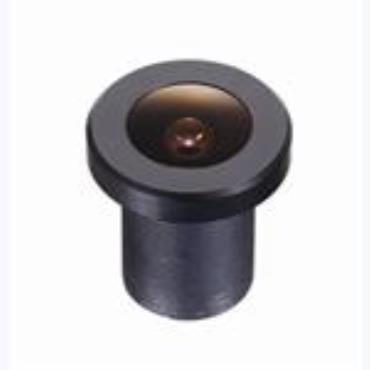

3.0 megapixel lens 2.8mm M12 board lens
Soyo Optics (Shanghai) Co.,Ltd
Region: China
Update: 2022/10/28
INQUIRY
Key Specifications
Product No. TT2826-3M
Image Sensor Format (mm) 1/2.7"
Image Sensor Pixel Size (μm)
E. F. L (mm) 2.8mm
B. F . L . (mm) 5.75mm
Flange B.F.L (mm)
Mechanical B.F.L (mm) 5.7mm
Iris Fixed
F No. 1:2.6
Field Of View (Deg)
Horizontal 112°
Vertical 84°
Diagonal 140°
IR correction
Object Distance (mm) ∞-0.3mm
Optical Distortion (TV Distortion) -61%
Mount M12
Working Temperature .-20°C - 60°C
Dimension Size Φ14×15.3mm
Weight (g) 4g
