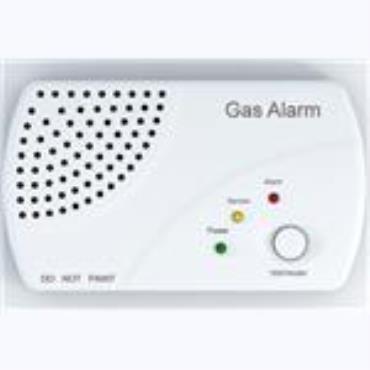

PEASWAY PW-936 series gas alarm are widely used on the market, it can be powered by either AC110, AC220, or DC12,DC 24V.It can detect LNG and LPG gas respectively. The state-of-the art microprocessor design of PW-936 ensures a continuous and precise monitoring of flammable gas.

Products features:

1. Japanese FIGARO semiconductor sensor head used for accurate flammable gas detection;

2. Microprocessor for circuit control and gas monitoring to assure performance stability and reliability;

3 .SMD circuit board design with FR4 double sides PCB — satisfactory quality and reliability guaranteed;

4. Test button verifies alarm operation any time;

5. Audible and visible warnings;

6. Silence /Test Button with 3 LED indicators;

7. Low battery warning;

8. Fault signal warning;

9. Easy installation and maintenance;

10. No battery is required for circuit control;

11. Loud alarm signal exceeding 85dB(A) at 3m;

12. Easy installation and maintenance;

13. Complying with UL1484 and EN 50194 Standards;

14. Attractive case design;

Products specifications:

Power supply: 220VAC 50HZ/60HZ 4.0W

Typical Current: 25mA

Temperature: 0°C to 50°C

Humidity: 0 to 95%RH, non-condensing or icing

Alarm Sound Level: exceed 85 dB (A) at a 3 m

Sensitivity: Per UL 1484 or EN50194

Propane gas: 5%-15% of the lower explosion limit; Natural gas: 3%-20% of the lower explosion limit

Dimensions: 110 x 64 x 45mm

Relay output optional;

Material: ABS;

5 Year quality limited warranty.
