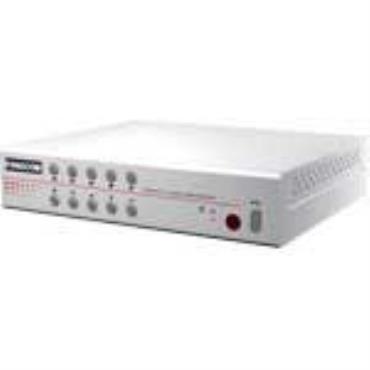

Low Cost Real Time 4ch H.246 DVR (HUGGY-4DA-1)
Low Cost Real Time 4ch H.246 DVR (HUGGY-4DA-1)
Panacom Technology Corp.
Region: Taiwan
Update: 2010/07/05
INQUIRY
Key Specifications

HUGGY Low Cost Real Time 4ch H.264 DVRLow Cost Real Time 4ch H.264 DVR

Compact, Fanless and Features Rich

Designed to Give You the Best Bang of the Bucks!


 Features


  • Real time recording with triplex operations
  • Your choice of D1, half D1 and CIF resolution with auto-balanced recording rates
  • Independent camera and recording profile for each channel
  • Superb and Intuitive GUI/Control
  • Picture-in-Picture display for Live/Playback
  • Instant 1 Minute replay of recorded video
  • Soft Channel swap via mouse drag-and-drop
  • Comply with regulation of limited recording time period
  • Events Logging and Export
  • Direct VGA Output
  • 3G Mobile Viewing
  • 2-year Factory Product Warranty

 Benefits


We strive to design the Huggy to give you the best bang of the bucks for the 4ch H.264 DVR at its price range, performance and quality wise.


The fanless operation ensures that Huggy will guard your premise 7/24 quietly and reliably, and we back it with our 2-year factory warranty.


The superb and intuitive Graphic User Interface and Control makes the Huggy a breeze to play with. No more layers after layers of labyrinth-like menu, all you need is just point and click all the way. In addition, Huggy allows the user to set independently camera and recording profile for each channel and keep the DVR running at its peak compression power by auto-balancing the recording profiles of all channels.


For those countries with regulated recording time period, Huggy will comply with freedom of limiting the recording period by the user.  You can save the DVR configuration to an USB stick and restore it later to the DVR or copy it to another DVR.


We trust you will love not only Huggy’s price but also its quality and performance.













 Specification


ModelsHUGGY-R4 Low Cost 4ch H.264 Network DVR
VIDEO
Video FormatNTSC/PAL (Auto Detection)
Video CompressionH.264
Video InputBNCx4
Video OutputVideo outx1, VGAx1
Display Frame Rate120/100fps
Display Resolution720x480 (NTSC)  /  720x576 (PAL)
Display ModeSingle/Sequence/Quad
Recording/Playback
Recording ResolutionD1: 720x480 (NTSC) / 720x576 (PAL)

Half D1: 720x240 (NTSC) / 720x288 (PAL)

CIF: 360x240 (NTSC) / 360x288 (PAL)

Recording RateD1: 60 FPS (NTSC) / 50 FPS (PAL)

Half D1: 120 FPS (NTSC) / 100 FPS (PAL)

CIF: 120 FPS (NTSC) / 100 FPS (PAL)

Recording ModeTime (Continuous) / Motion Detection
PlaybackSearch by Time/Event
Storage/Backup
Storage SupportSATA HDDx1
Backup DeviceUSB stick
Connectors
USBUSB 2.0 Portx1
MouseMouse Portx1
OSD/Control
GUI Control InterfaceYES
Multi-lingual OSD YES
AuthenticaionYES
Picture-in-PictureYES (Lplayback/Live)
Firmware UpgradeUSB / Network
Network
Network 10/100 Ethernet(RJ-45)
Network ProtocolTCP/IP, Static IP, DHCP, PPPoE(ADSL), DDNS
Network RemoteYES ( Client Program and IE browser).
Multi-Langual OSDYES
3G  Mobile ViewingYES.
Oteher Info
Power SupplyInput:AC100~240V 50/60Hz, Output:DC12V, 3A
Dimension (WxHxD)21.8 x 4.7 x 18.2 cm
Weight850g (w/o Hard Drive)
Operating Temp.5°C~45°C
