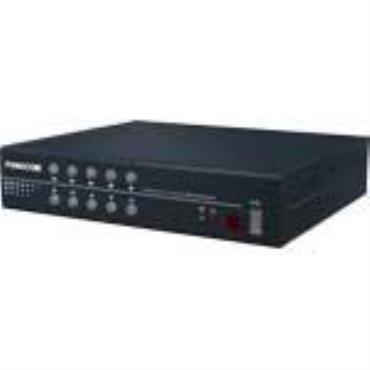

Low Cost Real Time 4ch H.246 DVR (HUGGY-4DA-0)
Panacom Technology Corp.
Region: Taiwan
Update: 2010/07/05
INQUIRY
Key Specifications
 |
Low Cost Real Time 4ch H.264 DVR
Compact, Fanless and Features Rich
Designed to Give You the Best Bang of the Bucks! |
Features
- Real time recording with triplex operations
- Your choice of D1, half D1 and CIF resolution with auto-balanced recording rates
- Independent camera and recording profile for each channel
- Superb and Intuitive GUI/Control
- Picture-in-Picture display for Live/Playback
- Instant 1 Minute replay of recorded video
- Soft Channel swap via mouse drag-and-drop
- Comply with regulation of limited recording time period
- Events Logging and Export
- Direct VGA Output
- 3G Mobile Viewing
- 2-year Factory Product Warranty
Benefits
We strive to design the Huggy to give you the best bang of the bucks for the 4ch H.264 DVR at its price range, performance and quality wise.
The fanless operation ensures that Huggy will guard your premise 7/24 quietly and reliably, and we back it with our 2-year factory warranty.
The superb and intuitive Graphic User Interface and Control makes the Huggy a breeze to play with. No more layers after layers of labyrinth-like menu, all you need is just point and click all the way. In addition, Huggy allows the user to set independently camera and recording profile for each channel and keep the DVR running at its peak compression power by auto-balancing the recording profiles of all channels.
For those countries with regulated recording time period, Huggy will comply with freedom of limiting the recording period by the user. You can save the DVR configuration to an USB stick and restore it later to the DVR or copy it to another DVR.
We trust you will love not only Huggy’s price but also its quality and performance.




Specification
Models |
HUGGY-R4 Low Cost 4ch H.264 Network DVR |
VIDEO |
|
Video Format |
NTSC/PAL (Auto Detection) |
Video Compression |
H.264 |
Video Input |
BNCx4 |
Video Output |
Video outx1, VGAx1 |
Display Frame Rate |
120/100fps |
Display Resolution |
720x480 (NTSC) / 720x576 (PAL) |
Display Mode |
Single/Sequence/Quad |
Recording/Playback |
|
Recording Resolution |
D1: 720x480 (NTSC) / 720x576 (PAL)
Half D1: 720x240 (NTSC) / 720x288 (PAL)
CIF: 360x240 (NTSC) / 360x288 (PAL) |
Recording Rate |
D1: 60 FPS (NTSC) / 50 FPS (PAL)
Half D1: 120 FPS (NTSC) / 100 FPS (PAL)
CIF: 120 FPS (NTSC) / 100 FPS (PAL) |
Recording Mode |
Time (Continuous) / Motion Detection |
Playback |
Search by Time/Event |
Storage/Backup |
|
Storage Support |
SATA HDDx1 |
Backup Device |
USB stick |
Connectors |
|
USB |
USB 2.0 Portx1 |
Mouse |
Mouse Portx1 |
OSD/Control |
|
GUI Control Interface |
YES |
Multi-lingual OSD |
YES |
Authenticaion |
YES |
Picture-in-Picture |
YES (Lplayback/Live) |
Firmware Upgrade |
USB / Network |
Network |
|
Network |
10/100 Ethernet(RJ-45) |
Network Protocol |
TCP/IP, Static IP, DHCP, PPPoE(ADSL), DDNS |
Network Remote |
YES ( Client Program and IE browser). |
Multi-Langual OSD |
YES |
3G Mobile Viewing |
YES. |
Oteher Info |
|
Power Supply |
Input:AC100~240V 50/60Hz, Output:DC12V, 3A |
Dimension (WxHxD) |
21.8 x 4.7 x 18.2 cm |
Weight |
850g (w/o Hard Drive) |
Operating Temp. |
5°C~45°C |
