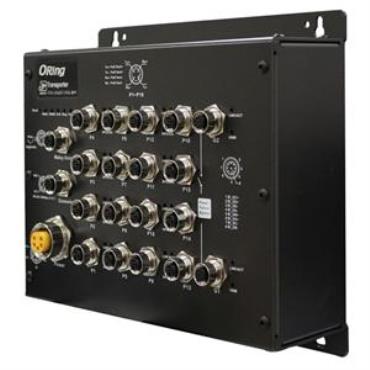

ORing's TransporterTM series managed Ethernet switches are designed for industrial applications, such as rolling stock, vehicle, and railway applications.  The TPS-3162GT-M12-BP1 is a managed PoE Redundant Ring Ethernet switch with 16x10/100Base-T(X) P.S.E. and 2x10/100/1000Base-T(X) ports which is specifically designed for the toughest and fully compliant with EN50155 requirement.  With completely support of Ethernet Redundancy protocol, O-Ring (recovery time < 10ms over 250 units of connection), Open-Ring, O-Chain and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology.  Another Open-Ring technology is also supported which can applied for other vendor's proprietary ring. And O-Chain technology is supported which can applied for multiple redundant Ethernet rings.  TPS-3162GT-M12-BP1 also supports Power over Ethernet, a system to transmit electrical power, along with data, to remote devices over standard twisted-pair cable in an Ethernet network.

Feature

• Leading EN50155-compliant Ethernet switch for rolling stock application

• 16 ports P.S.E. fully compliant with IEEE802.3af standard, provide up to 15.4 Watts per port

• World's fastest Redundant Ethernet Ring: O-Ring (recovery time < 10ms over 250 units of connection)

• Open-Ring support the other vendor's ring technology in open architecture

• O-Chain support applications with multiple redundant rings topology

• STP/RSTP/MSTP supported

• Support PTP Client (Precision Time Protocol) clock synchronization

• IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic

• SNMP v1/v2c/v3 support for secured network management

• RMON for traffic monitoring

• Support VLAN and LLDP protocol

• DHCP assign each Equipment IP by each Port

• Provided Relay bypass function with two gigabit ports

• Event notification through Syslog, Email, SNMP trap, and Relay Output

• Windows utility (Open-Vision) support centralized management and configurable by Web-based ,Telnet, and Console (CLI)

• M12 connectors to guarantee reliable operation against environmental disturbances

• Wall mounting enabled
