Overview

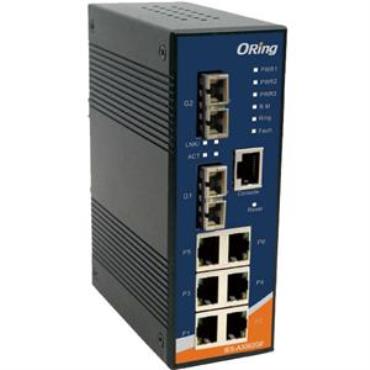

IES-A3062GF series are managed Ethernet switches with 6x10/100Base-T(X) and 1000Base-SX or 1000Base- LX ports which is specially designed for the C1D2/ATEX certified with hazardous locations requirements. IES-A3062GF series support redundant power input and surge protection. The wide operating temperature range from -40°C to 70°C and C1D2/ATEX certified can satisfy most of operating environments.   IES-A3062GF Series can be managed centralized and convenient by a powerful windows utility — Open-Vision. In addition, the wide operating temperature range from -40°C to 70°C can satisfy most of operating environment. Therefore, the switch is one of the most reliable choice for highly-managed Fiber Ethernet application.

Feature
• Fastest Redundant Ethernet Ring: O-Ring (recovery time < 10ms over 250 units of connection)
• Open-Ring supports the other vendor's ring technology in open architecture
• STP/RSTP/MSTP supported
• Support PTP Client (Precision Time Protocol) clock synchronization
• IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
• Port Trunking for easy of bandwidth management
• SNMP v1/v2c/v3 support for secured network management
• RMON for traffic monitoring
• Support LLDP protocol
• Port lock to prevent access from unauthorized MAC address
• Event notification through Syslog, Email, SNMP trap, and Relay Output
• Windows utility (Open-Vision) support centralized management and configurable by Web-based ,Telnet, Console, CLI
• Complete combination of 10/100Base-T(X), 100Base-FX, 1000Base-T, 1000Base-SX, and 1000Base-LX ports
• Rigid IP-30 housing design
• DIN-Rail and wall mounting enabled
