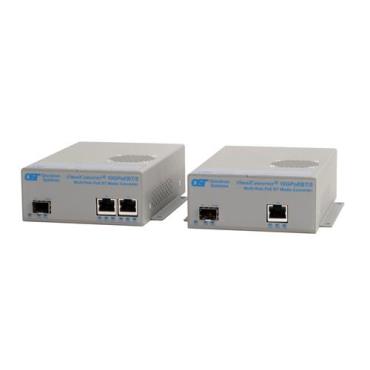

OmniConverter multi-rate media converters feature a Small Form Pluggable (SFP) transceiver receptacle port supporting a variety of copper and fiber transceivers. They support 10/100/1000BASE-T, 1000BASE-T, 2.5BASE-T, 5GBASE-T and 10GBASE-T copper transceivers and 1G and 10G multimode or single-mode fiber, dual or single-fiber transceivers in standard, CWDM and DWDM wavelengths.

The 10GPoE+/S supports IEEE 802.3at (15 and 30W) and the 10GPoEBT/S supports IEEE 802.3bt (60 and 100W) per user port depending on the model.

The OmniConverter PoE media converters are well suited for the power and bandwidth demands imposed by IP cameras, access points and small cell devices on the market today. OmniConverter 10G media converters provide high-speed network distance extension with fiber optic cabling, and function as PoE injectors.

The multi-rate/multi-gig PoE media converters automatically negotiate and deliver the power level required by a Powered Device (PD) partner. Depending on the OmniConverter PoE model, the media converter can deliver up to 100 watts of power per port.

-Unmanaged 10G multi-gigabit/multi-rate PoE media converters

-One 1/10G SFP/SFP+ standard/CWDM/DWDM transceiver uplink port

-Supports copper and fiber SFP/SFP+ transceivers

-RJ-45 user ports support 10M, 100M, 1G, 2.5G, 5G and 10G

-Supports jumbo frames up to 10,240 bytes

-Models support IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt (60W and 100W)

-Multiple port configurations:

-2 Port Device: 1 SFP/SFP+ + 1 RJ-45

-3 Port Device: 1 SFP/SFP+ + 2 RJ-45

-Configurable PoE power reset

-Available with AC to DC power adapter or DC terminal block

-All models provide full PoE power simultaneously to all RJ-45 user ports

-Integrated wall mount brackets

-Wall, Rack and DIN-rail mountable

-Commercial (0º to 50ºC) and wide (-40º to 60ºC) operating temperature ranges

-Made in the USA

-Lifetime warranty and free 24/7/365 Technical Support
