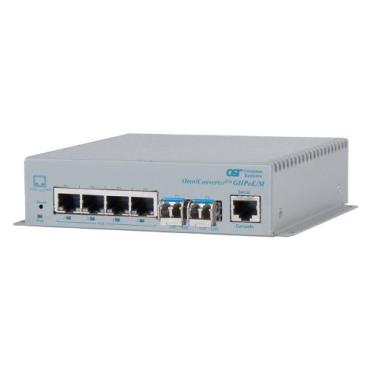

The OmniConverter GHPoE/M and GHPoEBT/M are compact High-Power PoE Ethernet fiber switch that features one or two Gigabit fiber ports and four 10/100/1000 RJ45 copper Power Sourcing Power-over-Ethernet ports. The GHPoE/M provides PoE, PoE+, and High-Power 60W PoE (also called 4 Pair PoE, PoE++, or UPoE) and the GHPoEBT/M provides up to 100W (IEEE 802.3bt) per RJ-45 port. The OmniConverter PoE switches are ideal for applications using outdoor pan-tilt-zoom cameras with heaters and blowers, and multi-stream wireless access points.

Features

• Supports PoE (15.4 W), PoE+ (30W), HPoE (60W) or IEEE 802.3bt (60W/100W) per RJ-45 port




• 1000BASE-X Gigabit fiber and 10/100/1000BASE-T RJ-45 with Power-over-Ethernet




• 5 Port and 6 Port switch configurations:


  • 1 Fiber + 4 Copper




  • 2 Fiber + 4 Copper




• Supports jumbo frames up to 10,240 bytes




• Management via Web, Telnet, SSH and serial interfaces




• Supports SNMPv1/v2c/v3 protocols




• SNMP management via Omnitron’s NetOutlook management software, or third-party SNMP management software




• Email Event Notification with Simple Mail Transfer Protocol (SMTP)




• Heartbeat signal to verify connectivity to the PD




• Configurable PoE Power Reset




• Supports ST, SC and LC fiber ports or SFP transceivers




• Fiber redundancy on models with two fiber ports




• Dual Device mode for operating as two separate switches




• Directed Switch mode to prevent port flooding




• AC to DC Power Adapter or 2-Pin DC terminal




• Wall, Rack and DIN-rail mountable




• Commercial (0º to 50ºC), wide (-40º to 60ºC) and extended (-40º to 75ºC) operating temperature ranges




• Free 24/7/365 Technical Support
