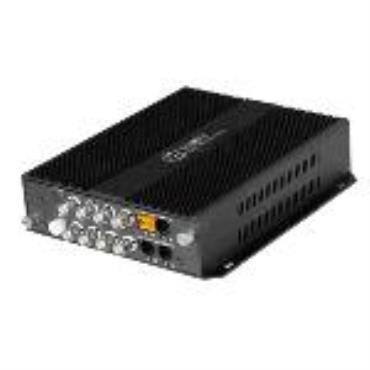

OB9252D transmits eight channels of composite video over one single mode or multimode fiber. Additional multi-channel bi-directional audio, data (RS232, RS422/485), contact closure, telephone, and 10M/100M Ethernet signal could be added to provide cost effective solution for enhanced application.

* Exceeds the RS250C standard for SNR, DG and DP
* 8MHz bandwidth, SNR≥65dB
* 8/10 bit digital PCM video coding
* Compatible with NTSC, PAL and SECAM
* Flexible configuration combination of audio/data/contact closure
* 24- bit digital audio, 85dB SNR
* RS232, RS422, RS485 or Manchester data
* Data transmission rate DC to 115200bps
* Super optical dynamic range, 0Km is not saturated
* Transmission distance up to 80KM
* Supported by OB Telecom standard network management system
* Standalone, and rack-mount in 19" 1U/2U/4U chassis
