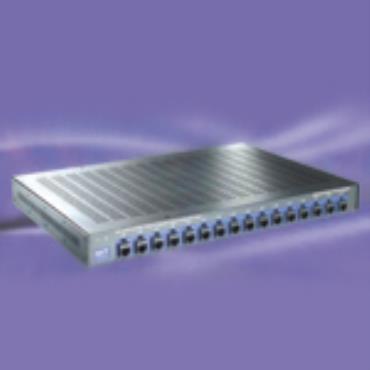

Providing class 2 SELV camera power and pass-through video & telemetry data connectivity for up to 16 cameras, each via a single RJ45 4-pair UTP cable

Standard telecom/datacom structured cabling pinouts per EIA/TIA 568B

Independently selectable 24 or 28 VAC with 1 Amp max per channel

Automatic-reset fault protection; transient protection

Individually floating outputs to ensure total ground-loop immunity

Diagnostic LEDs showing load/no load, miswires, and overload conditions

Using with the NV-216A-PV or the NV-218A-PVD transceiver at the camera

Power cameras via UTP over significant distances
