* ARM9 RISC CPU embedded(210MHz, 16KB I/D-Cache)
* High Quality ISP
- Supports Sony/Sharp CCD Sensor
- Supports OmniVision/Micron CIS
- NTSC/PAL, High/Normal, AE/AWB, 2D NRF
- Motion/defect detection, privacy zone, horizontal mirror
- On screen display(OSD)
* Video capture (CCIR656 input, maximum capture resolution up to 1280x1024)
* H.264 Encoder (MPEG-4 AVC/JVT/H.264(ISO/IEC 14496-10) standard)
- Encode D1 max 60fps
* JPEG encoder(JPEG (ISO/IEC 10918-1) baseline standard)
- Encode D1 max 30fps
* Crypto accelerator(DES, AES, SHA-1, MD5, Hash & HMAC)
* DDR SDRAM memory controller
* Static memory controller
* 10/100Base-T ethernet controller
* 3-port UART / SD card controller
* 16-pin GPIO / Timer / WDT / RTC / I2C / I2S
* DAC for CVBS and IRIS

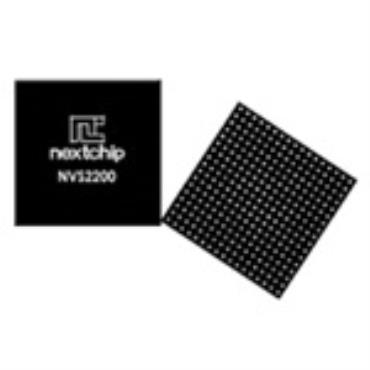

* Package(289-TFBGA, 14mmx14mm, 0.8P)
