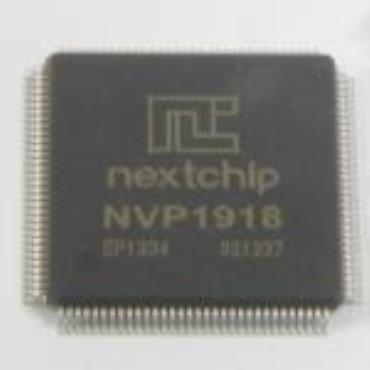

NVP1918(Video Decoder with Audio CodeC and Video Encoder)
NEXTCHIP Co., Ltd.
Region: Korea, Republic of
Update: 2013/02/04
INQUIRY
Key Specifications
NVP1918 includes 8-Ch 960H video decoder, 1-Ch 960H video encoder and 10-Ch audio codec. It accepts separate 8 CVBS inputs from camera, TV, DVD and the other video signal sources.
■ 8-Ch 960H video decoder
■ On-Chip 10-Ch PCM audio codec
■ On-Chip 1-Ch 960H video encoder
■ Various output I/F (27/36/54/72/108/144MHz)
■ Cascade mode up to 16-Ch
■ Motion detection (32×24)
■ Compact package
■ Low power consumption
■ Coaxial Protocol
■ NVP1914/NVP1118B/NVP1114B All device is pin compatible
