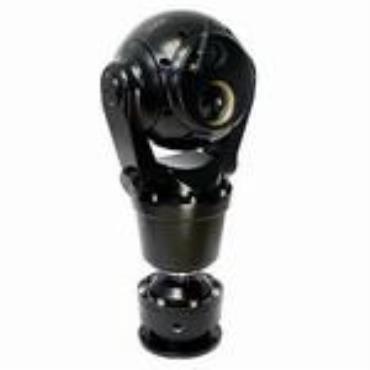

* The body is made from 5mm-15mm al-alloy material, firm and airproof, flat designed optical window uses 5mm tempered glass, can prevent distorted images and protect the built-in integrated camera.

* Built-in high performance FLIR thermal infrared imager

* Model PHOTON320

* Detector type Focal Plane Array(FPA), uncooled Vanadium Oxide microbolomete

* Effective Pixel 324×256

* Spectrum 7.5 - 13.5μm

* Field of View 50°(H) ×38°(V),14.25mm lens

36°(H) ×27°(V),19mm lens

20°(H) ×15°(V),35mm lens

14°(H) ×11°(V),50mm lens

* IFOV 2.667 mrad(14.25mml lens)

2 mrad(19mm lens)

1.086 mrad(35mm lens)

0.760 mrad(50mm lens)

* Thermal sensitivity < 85 mK at F=1.6

* Video Frame 7.5Hz(NTSC) or 8.3Hz(PAL)

* Detection Range 780M human detection range;

2.2KM object detection range

* Digital Zoom 2x

* Image process Digital image detail Enhance technology (DDE)

* Analog video output RS170 EIA/NTSC or CCIR/PAL compound video

* Digital video output 14-bit serial LVDS data stream
