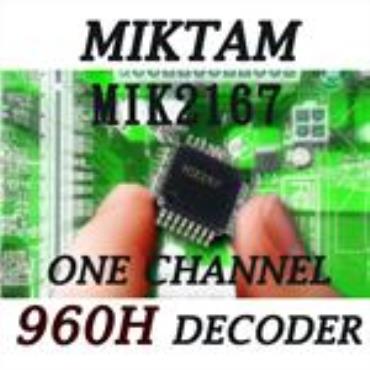

The MIK2167 is a 1-channel 960H Video decoder backward compatible with 720H Video Decode through SW programming.

　The MIK2167 supports video interfaces YCbCr “4:2:2”, “4:1:1,” and “4:2:0,” and it adopts a powerful video synchronization circuit. A special CCIR656 output mirror function is also supported for CAR application. In addition, it''s an ultra-low power device with 150 mW under normal operation and 50mW for suspend mode.

　The MIK2167 is available in LQFP 32-pin 5mmx5mm package.

Core power:1.8V, I/O power: 3.3V, ADC power :1.8V.
