- 16 Ch. of Video & Audio

- Preview: 4CIF

- Recording: 4CIF//2CIF/CIF/QCIF

- Dual-Stream

- Include Windows Hybrid DVR SW

***Detailed Introduction***

===Main functions===

Each video channel can be compressed independently in 25F/S (PAL) or 30F/S (NTSC). Both variable bit-rate and variable frame rate are supported

Each audio channel can be compressed independently, using an OggVorbis audio standard. The output bit-rate is 16 kbps

The output video and audio streams are integrated to generate the synchronized H.264 stream. Video and audio coincide with each other from beginning to end when the stream is played back

Real-time display resolution:

PAL:4CIF (704x576)

NTSC: 4CIF (704x480)

Real-time recording & playback resolution:

PAL:4CIF (704x576), DCIF(528x384), 2CIF(704x288),CIF(352x288), QCIF(176x144);

NTSC: 4CIF (704x480), DCIF(528x320), 2CIF(704x240),CIF(352x240), QCIF(176x120)

Supports dual stream mode, ensuring fluent network transmission

Supports multi-zone motion detection

Supports position configurable OSD & LOGO

Supports digital watermar

Supports partial zone sheltering

Supports independent configuration of video quality and frame rate for each channel

Supports independent configuration of brightness, contrast, saturation and hue of Video signal for each channel

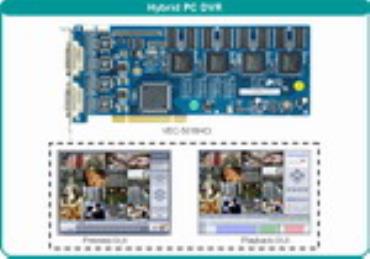

The DVR card incude windows based Hybrid DVR software, which is a versatile video management system that enable both analog cameras and IP cameras to work together. It can manage a comprehensive combo of 64 channels simultaneously.

With mobile stream server and feature-rich DVR Client, customers can reach video surveillance data from any location at any time using a desktop computer, laptop or PDA.

===Supported IP Device===

Axis IP Cameras and video server

Hikvision IP camera, video server and DVR

Linovision IP camera and DVR

===Outstanding features of Hybrid DVR Software ===

Up to 64 analog/IP channels

H.264 hardware compression

Pentaplex functions, live, recording, playback, backup & remote access;

Realtime CIF/CIF/DCIF/D1 recording;

Intuitive GUI Operation

Flexible schedule recording

Instantly playback

Intelligent recordings search

Alarm IO integration

Support dual-stream compression

Mobile live view

===Supported OS===

Windows 2000/2003, Window XP, Windows Vista
