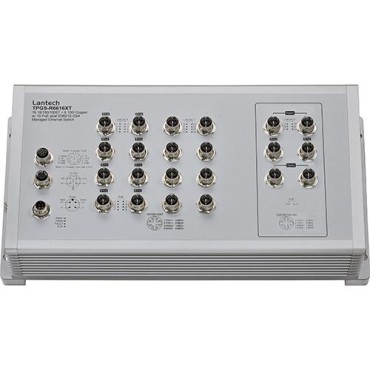

● Total 16 Port 10/100/1000T + 6 10G Copper Switch w/8/10/12 (8 copper + 2/4 uplink 10GT copper PoE ports) or 16 PoE ports

● Support IEEE802.3at/af up to 30W per port PoE management incl. detection and scheduling

● Support PXE to verify switch firmware with the latest or certain version on server

● Enhanced G.8032 ring protection < 20ms for single ring. Supports enhanced mode and basic mode; Enhanced G.8032 ring covers multicast packets; MSTP 8 MSTI /RSTP; support MRP ring

● Miss-wiring avoidance & node failure protection

● User friendly UI, including auto topology drawing ; Complete CLI

● Support LACP link aggregation, IGMP v3/router port, MLD snooping, DHCP server & DHCP Option82; Port based DHCP distribution, Mac based DHCP server, QoS by VLAN, SSH v2/SSL, HTTPS, INGRESS ACL L2/L3,TACACS+, QinQ

● Protocol based VLAN ; IPv4 Subnet based VLAN

● Enhanced Environmental Monitoring for temp. actual input voltage, current and total power load

● Optional smart bypass 10GigaT ports in case of power failure, CPU hang (up to two pairs)

● IP21 aluminum enclosure

● Inrush current protection

● Optional L3Lite or IEC 61375-2-5 TBN features to be upgradable

● USB port to upload & download the configuration file

Dual power input 16.8V~137.5V with galvanic isolation between input power, PoE and system

● Factory reset pin to restore to factory default setting

Wide range operation temperature : -40C~70C/-40F~158F
