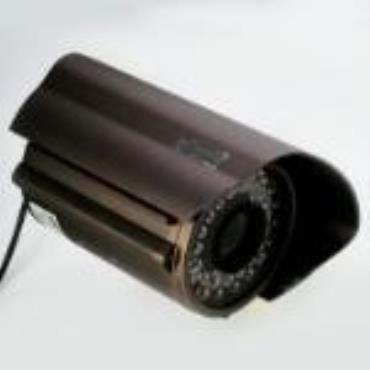

EL-2817DS camera is integrated with infrared technology with maximum of 70m infrared range, allows clear long distance monitoring in both day time and night time. Built with weatherproof capability to withstand harsh weather condition. Suitable for outdoor installation.

> Image Device: 1/3” SONY CCD
> System: PAL
> Pixels: 500 (H) x 582 (V)
> Resolution: 420 TV Line
> Minimum Illumination: 0 LUX / F1.2
> S/N Ratio: ≥48dB
> Electronic Shutter: 1/50 (1/60) ~ 1/100,000 sec
> Power Supply: DC 12V±10%
> Sync. System: Internal
> White Balance: Auto
> Gain Control: Auto
> Lens: 16mm
> Video Output: 1.0 Vp-p / 75Ω (BNC)
> Illumination Distance: 50-70m
> Operating Temperature: -20°C ~ 50°C
> Protection Rate: Ip65
> Dimension: 181mm x 142.5mm x 117mm
