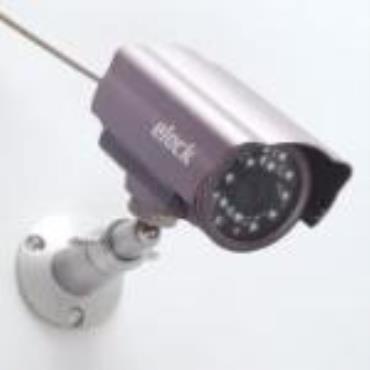

EL-2649S IR camera uses 1/3” SONY Super HAD Image Device that generates high quality color images, also integrated with infrared technology that allow crystal clear vision even at night or dark places. Suitable for indoor installation.

> Image Device: 1/3” Color SONY Super HAD
> System: PAL
> Pixels: 500 (H) x 582 (V)
> Resolution: 420 TV Line
> Minimum Illumination: 0 LUX / F2.0
> S/N Ratio: ≥48dB
> Electronic Shutter: 1/50 ~ 1/110,000
> Power Supply: DC 12V±10%
> Power Consumption: 300mA max
> Sync. System: Internal
> White Balance: Auto
> Gamma: 0.45
> Lens: Board Lens 3.6mm / F2.0 (option: 2.8/6/8/12/16mm)
> Video Output: 1 Vp-p / 75Ω
> Infrared Luminary: 18 pieces IR-LED
> Illumination Distance: 15m
> Operating Temperature: -10°C ~ 50°C
> Storage Temperature: -30°C ~ 60°C
> Dimension: 130mm x 66mm x 66mm
