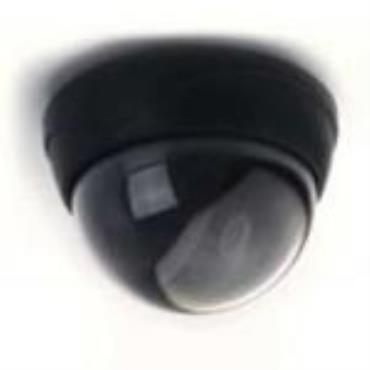

EL-609S dome camera is equipped with color image generating capability with 1/3” SONY CCD chip set. Its small size design allows ease of installation, suitable for indoor usage.

> Image Device: 1/3” Color SONY Solid State Image Device CCD
> System: PAL
> Pixels: 500 (H) x 582 (V)
> Resolution: 420 TV Line
> Minimum Illumination: 0.2 LUX/ F2.0
> S/N Ratio: ≥48dB
> Electronic Shutter: 1/50 ~ 1/110,000
> Power Supply: DC 12V±10%
> Power Consumption: 80mA max.
> Sync. System: Internal
> White Balance: Auto
> Gamma: 0.45
> Lens: Board lens 3.6mm/ F2.0 (option: 2.8/6/8/12/16mm)
> Video Output: 1.0 Vp-p / 75Ω
> Operating Temperature: -10°C ~ 50°C
> Storage Temperature: -30°C ~ 60°C
