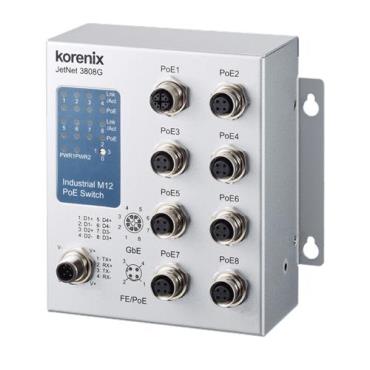

Korenix Industrial PoE Switch JetNet 3808G-M12
Korenix Technology Co., Ltd.
Region: Taiwan
Update: 2018/10/29
INQUIRY
Key Specifications
- 1 Gigabit/PSE M12 X-code, 7 100M/PSE M12 D-code, M12-A Power
- Power feeding 15.4W/30W, compliance with IEEE 802.3af/at
- Power System design with 120W PoE budget and compliance with safety requirement
- Rugged M12 Ethernet, power connectors for vibration and shock application
- IEEE 802.1p Class of Service (CoS) for packet forwarding precedence
- 10K bytes Jumbo Frame for large file transmission
- Broadcast storm packet filtering
- Embedded DC 54V Booster
- Railway Standards: EN50155, EN50121-3-2, EN50121-4
- Traffic Standard: E-mark E13
- -40~75℃operating temperature
