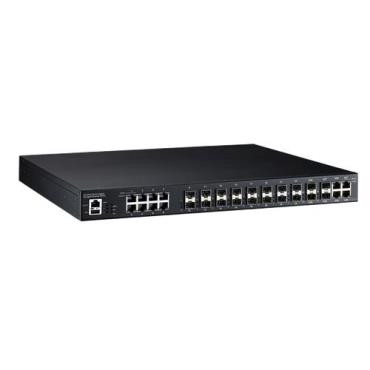

Korenix JetNet 5428G-20SFP is a 19-inch Gigabit Layer 2+ Industrial Switch equipped with 8 100 Base-TX ports, 16 100 SFP, and 4 100/1000 RJ-45/SFP combo ports. It is a special design for industrial control rooms where high-port density and performance are required.

In addition to the advanced cyber security and the advanced cyber redundancy features, JetNet 5428G-20SFP model provides the redundant power supplies to ensure the high availability for mission critical industrial applications. With JetNet 5428G-20SFP, you can not only fulfill the application requirements but have the best solution for the industrial Ethernet infrastructure.

The JetNet 5428G-20SFP features:

*8 100Base-TX, 16 100 SFP, 4 100/1000 RJ-45/SFP combo ports

*Advanced Cyber Security – DHCP Snooping, IP Source Guard, Dynamic ARP Inspection, L2/L3/L4 Access Control List (ACL)

*Advanced Cyber Redundancy – MSR, SuperChain, ITU-T G.8032 ERPS

*USB Firmware upgrade and configuration backup and restore

*EEE Energy saving

*Friendly Device and Auto Network Topology utility

*Isolated redundant power inputs with universal 24/48VDC power or 110/220 VAC power

*Compliance with EN50121-4 and NEMA TS2

*-40 to 75 ℃ operating temperature, fanless
