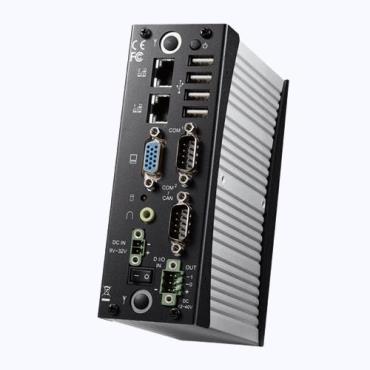

Korenix JetBox 8312 is an Intel Atom-N2600 1.6GHz dual core CPU based computer with 2GB DDRII RAM system memory and built in media processor for multimedia performance enhancement. The volume and performance of the JetBox 8312 is utilized as a perfect front end device, due to it is designed in a compact size, encased in a DIN-rail type mounting as well as carrying all major interfaces, such as four USB2.0 ports, two RS-232/422/485 port (one port support CANbus), VGA, and high resolution audio. In addition, it is equipped with two RJ-45 ports which support web server services for today''''s challenge network communication environment.

-Fanless and low power consumption design

-Intel dual core CPU (Atom-N2600 1.6GHz, 1MB L2 Cache) and System Chipset (D2600+NM10)

-One 204-Pin SoDIMM socket with 2GB DDR3 RAM (4GB max.)

-Support two Giga LAN for Realtek Chipset

-Four USB V2.0 Ports

-One CAN Bus

-2-In and 2-Out digital I/O

-One CFast Card Type I/II socket

-One SD socket (Class6)

-One 2.5'''''''' SATA HDD space

-Two RS-232/422/485

-Support Expansion I/F with PCle Mini Card slot
