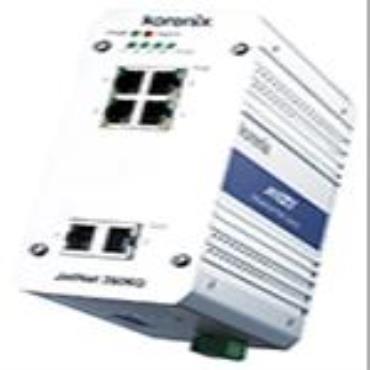

JetNet 3806G is a PoE Boost Switch designed with 4 Fast Ethernet PoE ports and 2 Gigabit uplink ports to ensure high-bandwidth uplink connection for large-scale surveillance in transportation system networks. JetNet 3810G integrates Korenix patented vehicle PoE technology - the 12V to 48V power booster for making the deployment of standard PoE IP cameras feasible on buses, railcars, ships, etc. Moreover, the compact size with aluminum alloy metal enclosure allows JetNet 3806G to reliably operate under -25~60℃ wide temperature range applications.

Key features of JetNet 3806G are:

* Four 10/100 TX IEEE 802.3af PoE ports plus two 10/100/1000TX uplink ports

* Korenix patented built-in DC 12V~24V Booster for rail, bus, transit transportation

* 60W* total power budget with max. 15.4W per port for PoE cameras

* Two gigabit Ethernet ports for larger uplink bandwidth of surveillance

* QoS for prioritized video transmission

* Fault relay for active warning of port failure

* -25~60℃ operating temperature
