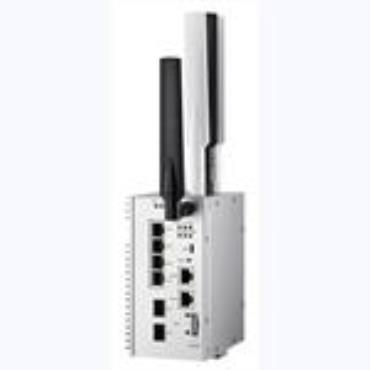

Korenix JetWave 2316 series is an industrial grade Cellular LTE Router with multiple Ethernet Ports. The JetWave 2316 Series equips with next generation wide temp Long Term Evolution (LTE) module, on-board 802.11n WIFI interface and up to 7 Gigabit Ethernet Ports, 1 for WAN and 6 for LAN.

Two 100/1000Base-X SFP Fiber port design provides great flexibility for field installation. The LAN switch also supports Korenix Rapid Super Ring (RSR), provides millisecond level Ring recovery time, 256 VLANs, traffic prioritizing and can be integrated with Korenix Managed Switch. The JetWave 2316 supports Cellular communication features, such as the multiple ports to LTE routing, LTE/WIFI auto-offload, WAN to LTE redundant, dual SIM standby, SNMP and Mobile Manager Server for remote monitoring. The OPC UA is designed for industrial M2M communication, a popular protocol for industrial automation and M2M applications.

The JetWave 2316 also provide different type VPN Client technology and 1-1 Open VPN Server for secure M2M connectivity. The product supports dual 24V(12-48V)DC input, USB, Digital Output and -40~70℃ wide operating temperature.

Industrial Cellular + 802.11n 2.4G IP Gateway, 4GT + 2G SFP Gigabit Switch

-Long Term Evolution (LTE) technology, 2x2 DL-MIMO, max. 100MDL/50M UL

-1GT WAN, support Static Route and RIP protocol

-6-port gigabit Switch, 4GT+2x100/1000Base-X SFP, Wire-speed Switching, LAN to WAN/LTE Routing

-Rapid Super Ring (RSR) Redundancy protocol, can be integrated with Korenix Managed Switch

-Support 256 VLAN tagging and QoS

-802.11n 2.4G, up to 300Mbps WLAN, Auto-offload

-WAN to Cellular redundant and Dual SIM Redundancy

-RSR Redundant Gateway as Router Redundancy

-NAT/Firewall/DMZ and Secure VPN connectivity

-OPCuA for Industrial M2M Communication

-Korenix View, Mobile Manager, SNMP, Korenix NMS

-1xRS232/422/485 Serial communication

-USB Configuration/Firmware restoring

-Dual DC 24V(12-48V), -40~70℃
