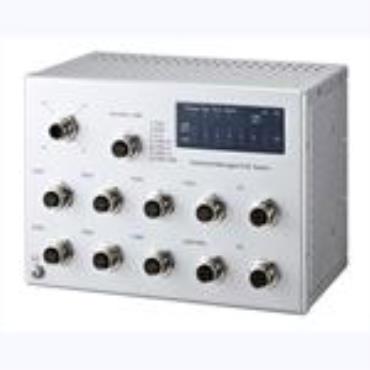

Korenix JetNet 6910G-M12 is new generation Power-over-Ethernet Switch with M12 rugged connectors for IP surveillance in harsh environment, including Train, MRT and LRV applications. It provides 8 ports PoE/PSE on Fast Ethernet ports and 1 Gigabit port, with device fault bypass function on 2 other Gigabit interfaces. The PSE system enabled 30W high power PoE function in compliance with IEEE 802.3af/at standard. The Switch system can also adapt to several power input ranges to meet different criteria in railway eco system. With the major features above, the JetNet 6910G-M12 is a superior device to construct IP surveillance network on train with multi-backup features to ensure passengers’ safety and network reliability.

-7 Fast Ethernet M12 D-code, 3 Gigabit M12-X-code, M12-A Power, M12-A Console/USB

-Rugged M12 Ethernet, Power, Management connector to prevent damages from shock and vibration

-8 IEEE 802.3at PSE allocated to 7 Fast Ethernet ports and 1 Gigabit Ethernet port

-2 Gigabit Ethernet interfaces support Device Fault Bypass function

-Railway Power System design with 100W PoE budget in compliance with safety requirements

-Network Redundancy- MSR (Multiple Super Ring), ITU-T G.8032 ERPS, RSTP, MSTP, Super Chain

-Fully Device Management- SNMP v1/v2c/v3, RMON, Web UI, Telnet and Local Console

-Friendly Device and Network Topology recovery Utility- Korenix View, Korenix NMS

-Advanced Network Security- MAC Security, IEEE 802.1x Port Based access control, IEEE 802.1x Radius Server authentication

-Layer 2 Network Performance - IEEE802.1Q VLAN, Private VLAN, Trunk, Traffic Filtering, DHCP Server/Client, Traffic Prioritize, Forwarding Rate Control

-Real Hardware Watchdog against internal system malfunction

-Railway power system - 110V (HVDC model), 24V (LVDC model)

-Railway Standards- EN50155, EN50121-3-2, IEC61373
