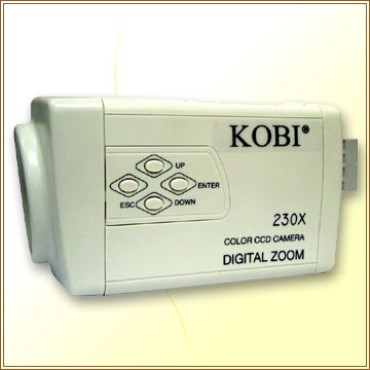

> Zoom camera (day and night 230X zoom)
> O.L.P.F (optical low pass filter) removable
> Signal system: PAL/NTSC
> Image sensor:
K-41CZ: 1/4-inch interline transfer Sony Exview HAD CCD
K-42CZ: 1/4-inch interline transfer Sony super HAD CCD
> Picture elements (H x V): 795 x 596 (PAL), 811 x 508 (NTSC)
> Scanning system: 625 lines/2:1 interlace (PAL), 525lines/2:1 interlace (NTSC)
> Sync system: internal/external
> Resolution: 480TVL
> Minimum illumination:
K-41CZ: 0.1 lux at F1.6 (color mode, 30IRE, SAGC);00.02 lux at F1.6 (B/W mode, 30IRE, SAGC), 0.002 lux at F1.6 (64X sense up, 30IRE, SAGC), 0 lux under IR illumination
K-42CZ: 0.5 lux at F1.6 (color mode, 30IRE, SAGC), 0.1 lux at F1.6 (B/W mode, 30IRE, SAGC), 0.01 lux at F1.6 (64X sense up, 30IRE, SAGC), 0 lux under IR illumination
> O.L.P.F removable: internal (auto switching)/external
> O.L.P.F change level adjustable:
K-41CZ: 0.02 to 15 lux adjustable
K-42CZ: 0.1 to 15 lux adjustable
> O.L.P.F change delay time: 5 to 8 seconds
> Diagonal angle: 58 (W) to 2.8 (T)
> Zoom speed: 4.2 seconds
> S/N ratio: over 50dB
> White balance: ATW 2500K to 9600K preset/manual
> Gamma correction: 0.45
> BLC function: auto on/off , 48 zones and weight adjustable
> AGC: super AGC 0dB to 36dB
> ALC: auto/fix
> Electronic shutter:
PAL: 1/50 to 1/100000 seconds
NTSC: 1/60 to 1/100000 seconds
> Fixed shutter: 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
> Frame integration: 2X to 64X sense up adjustable
> Optical zoom: 23X optional zoom lens (F1.6 to 3.8, f = 3.6mm to 82.8mm)
> Digital zoom: 10X digital zoom
> Motor-zoom/focus/iris: 800,000 times life
> Focus: auto/manual
> Position: 64 preset memory positions (zoom/focus)
> Video output: composite output 1.0Vp-p at 75 ohms
> External control: RS-232
> S-Video output: Y/C output 1.0Vp-p at 75 ohms
> Communication baud rate: 9600bps
> Operating temperature: -10 to 50 degrees Celsius
> OSD function: optional and digital zoom, focus, iris, gain, white balance, BLC, maskalarm, motion, sense up, position
> Storage temperature: -20 to 70 degrees Celsius
> Operating humidity: 10% to 85% RH
> Power supply: DC 12V +/- 1V, 2.5W maximum
> Dimensions (W x H x L): 70 x 63.6 x 123.5mm
> Weight: 380g
