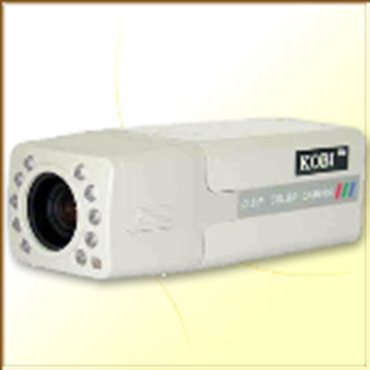

> SONY HQ1 / 540TVL

> IR Cut Filter Auto-Switching

> Built-in Aspherical D/N Lens

> 10 IR LEDs for Night Vision

***********************************************

*Image Sensor :1/3"SONY Super HAD CCD

*DSP:SONY HQ1

*Number of Total Pixels :NTSC 811(H) x508(V) PAL 795(H)x596(V)

*Sync. Modes :Internal

*Resolution :540TVL

*Minimum Illumination :0Lux(IR LED ON at 4Lux)/controlled by a CDS sensor

I*R Working Distance :10~15M(Indoor)

*Back Light Compensation :ON/OFF (Switchable)

*Automatic Gain control :ON/OFF (Switchable)

*F.L (Flickerless) :ON/OFF (Switchable)

*S/N Ratio :More than 50dB (AGC Off)

*Auto White Balance :AWB

*Video Output :1Vp-p Composite / 75 ohm

*Lens/ Angle of view(H) :f3.8mm~9.5mm/F1.2 Aspherical D/N Lens/ 74.2~30.0(Standard)

f2.5~6mm / F1.3 Aspherical D/N Lens/ 108.2~47.6 (Optioanl)

*Power Supply :1E:12 Vdc ; 2E:90~260Vac

*Power Consumption :4.5W

*Operating Temp. :-10C~+50C / RH 85% or less

*Storage Temp. :-20C~+60C

*Dimensions :55(W) x 47(H) x140(H)mm

*Weight :220g
