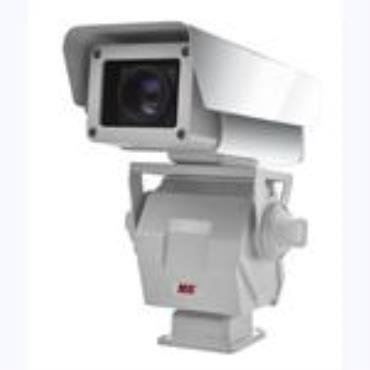

J-IP-8110 series intelligent variable speed integrated equipment with inner decoder

Adopts aluminum alloy material, waterproof, heat-resistant and anti-corrosion

With the driving of high intensity geared motor, it can auto-scan and install inner heater

Supply voltage: PTZ DC 12V (± 10%)

Exterior power supply: AC 22V transform to DC 12V 4A

Consumed power: PTZ ≤ 10W, white light ≤ 20W

Scan scale:

Pan: 0 to 360° Continuously

Tilt: -70 to 20°

PTZ scan precision: 0.05°

Turn speed:

Pan: 0.8 to 35° /s

Tilt: 0.8 to 20° /s

Applicable temperature: -20 to 55° C

Address scale: 1

Presets: 255

Presets speed:

Pan: 20° /s

Tilt: 20° /s

Presets precision: ± 0.05°

Baud rate: 9600BPS

System: PAN/NTSC

Communication format: RS-485

Tilt maximum torque: 9Nm (state standard)

Output voltage: DC 12V (± 10%)/3A

Maximum loading capacity: 5kg (state standard)

Protection grade: IP66

Weight: PTZ: 3.5kg, 2.5kg double-lamp housing

Supply voltage PTZ DC 12V (±10%)

Exterior power supply AC 22V transform to DC 12V 4A

Consumed power PTZ ≤10W, white light ≤20W

Scan scale

Pan 0 to 360° continuously

Tilt -70 to 20°

PTZ scan precision 0.05°

Turn speed

Pan 0.8 to 35°/s

Tilt 0.8 to 20°/s

Applicable temperature -20 to 55°C

Address scale 1

Presets 255

Presets speed

Pan 20°/s

Tilt 20°/s

Presets precision ±0.05°

Baud rate 9600bps

System PAN/NTSC

Communication format RS-485

Tilt maximum torque 9Nm (state standard)

Output voltage DC 12V (±10%)/3A

Maximum loading capacity 5kg (state standard)

Protection grade IP66

Weight PTZ3.5kg, 2.5kg double-lamp housing
