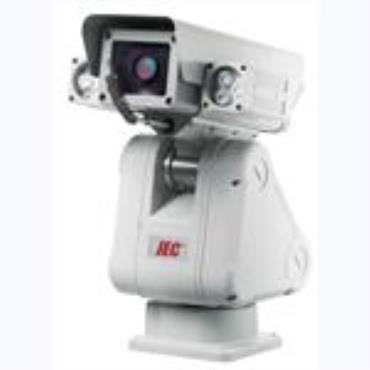

·IP PTZ Camera with RJ45 port,support IP Camera,HD-SDI Camera

·High intensity aluminum alloy casing.waterproof,heat resistant,ageing resistance,

anti-corrosion.Designed for all-weather environment.

·Protection Grade IP66, special surface treatment can meet three proofing requirements

·High precision orientation,tour through presets in groups·

·Absolute position,the closed loop control of position velocity,no

self-checking after powe-on

·Multi-mast the PTZ, flexible,convenient.Prompt response without lag.

·Pan scan and Limit scan function

·Angle Postback function

·Precise stepping motor drive,quick-witted, smooth operation, jitter-free.

·Powerful hommization Chinese & English menu,with mission editor function

·Support multiple integrated camera

·Displacement caused by the outside force can self recovery original position

·Multipath Alarm function

·Multipath Timing function

·Multipath pattern scan(PATTERNS)

·Manual/Auto IR light

·Automatic recognition of Camera without dial-up

Technical Specification:

Supply VoltageAC24V (4A)

Working temperature-30~60degree celsius

Working humidity10%~90%RH

Power consumption50W

ProtocolPelco P or Pelco D

Communication formatRS-485

Baud Rate1200/2400/4800/9600bps

Address Range000~255

Pan Turn speed0.1°~60°/s(Manual, 32 grade speed optional)

Tilt Turn speed0.1°~60/s(Manual, 32 grade speed optional)

Pan turn scale360°continuously pan

Tilt turn scale-60°~30°

Presets No.Maximum 256

Left and right scanAny two points can be set(32 grade speed optional)

Tour Scan4 group/32 presets every group/the dwell time of every point can be set

Track Scan4 group

360° ScanAny angle in tilt can be set(64 grade speed optional)

Alarm Function4 channels alarm input,2 channels alarm output

IR light effectTwo group of LED Arra/ illumination distance 100M

Protection gradeIP66

Lightning protectionTwo grades lightning protection and three groups protection point (vedio, commumnication, power supply)

Weight10kg
