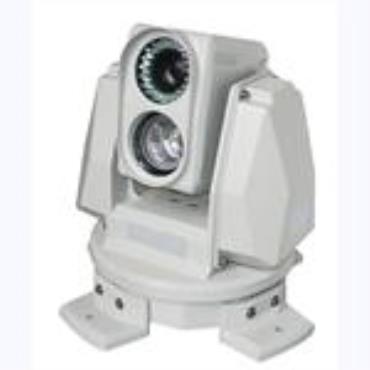

High-intensity aluminum alloy, anti-impact, and anti-cauterization IP66 powerful spring and rubber system, suitable for the mobile environment multiple installations: Magnetic catch, bolt installation built-in temperature control circuit, all-weather environment design double window, camera match IR light, camera match thermal, or two camera proximate and teleradiography double lights, maximum optical range is 100m IR light can linkage camera and light, can be close by manual match with s3 series camera have 5 to 15Hz machine power anti-shake and auto-follow function.

Technical data (IP version)

External interface

Video output:1 route CVBS analog output

RS485:1 route,support transparent channel connection

Ethernet:1 route RJ45 10M/100M auto adapt to ethernet port

Software

Network protocol:TCP,UDP,IP,HTTP,DHCP,RTSP,FTP,SMTP,DNS,DDNS,NTP,ONVIF

Web browser:Microsoft Internet Explorer 6.0 or above version

SDK:Support

Safety:password protection,administrator authority

Electrical specification

Supply voltage:AC 24V(±10%) 50/60 Hz

Consumed power: PTZ:60W,Heater:26W(optional)

Pan tilt

Pan turn speed: 0.8-18°/S

Tilt turn speed: 0.3-7°/S

Pan turn scale: 0~355°

Tilt turn scale:-80°~+60° (pan and tilt angle can adjustable)

Address scale:0~255

Preset NO.:Maximum 128

Preset precision:± 0.1°

Communication format:RS-485

Protocol:Pelco-D/P protocol

Baud rate: 1200/2400/4800/9600bps optional

Others

Working temperature:-10ºC-+50ºC,-30ºC-+50ºC(with heater)/100M
