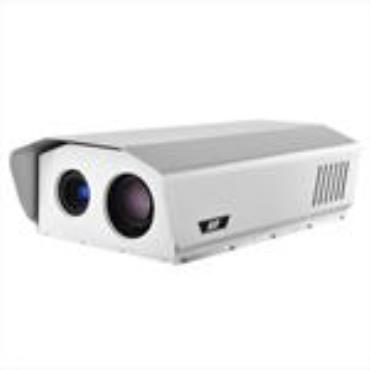

Double window design

Optional visible light cameras, thermography, infrared lights, laser device

Built-in adjustable mounting slide plate

Built-in heater & fan auto temperature control circuit

Double window with clapboard-inside design, prevent the equipment in both sides interfering with each other

Provides protection from dust and water, anti-corrosion, heat-resistant, suitable for all-weather outdoor environment

Technical data:

Input voltage: AC24V(±10%) 50/60Hz

Power consumption: Heater≤60W Fan ≤2W

Automatic temperature control: Heater Open:5℃±5℃ Close:15℃±5℃

Fan Open:40℃±5℃ Close:25℃±5℃

Open mode: Back-opened

Material Body: aluminum alloy/Viewing window: optical glass

Operating ambient temperature: -35℃～+65℃(with Heating elements)

Operating ambient humidity: ＜90%(without condensing agent, under heating conditions)

Viewing window: Camera windowΦ120mm,laser window Φ90mm

Maximum size of camera installation: 600mmX300mmX140mm

Both sides of the space: 630mmX354mmX190mm

Recommend pan tilt: J-IP-7240-DL；J-IP-4250-DL

Installation environment: Indoor and outdoor

IP standard: IP66
