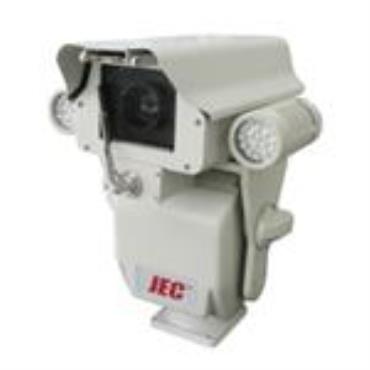

With HD-SDI Port,canbe quipped with Sony 20X/20X HD-SDI camera,or with JEC 2X/30X HD-SDI camera.

Powerful function and human menu setup

Speedy focus and catch targets

Point security technical, age-resistant, high-effectiveness, and high-ray length

More than 50 meters infrared ray dark distance

360 degrees continuous pan

Uses brushless machine

Independent template and easy maintenance

Speedy reaction

Designed for all weather environment

High-intensity aluminum-alloy material, perfect design

Built-in real-time monitor

Product function & specification

Voltage: 220V AC

Consumed power: ≤ 50W

Pan speed: 1 to 60°/s

Tilt speed: 1 to 40°/s

Pan scale: 360 continuously pan

Tilt scale: -80 to +60°

Suitable temperature: -30 to +55°C

Communication format: RS-485

Address scale: 0 to 255

Preset number: 128

Built-in protocol: Pelco P or D

Baud rate: 1,200, 2,400, 4,800, and 9,600bps

Infrared ray wavelength: 850nm

Infrared ray half-power angle: 30° (10, 25, 45, and 60°) Infrared ray consuming power: 5,000W (1,500mW)

Infrared ray useful lifespan: 10,000 hours

Useful illumination distance: ≥ 100meters

Weight: 11kg
