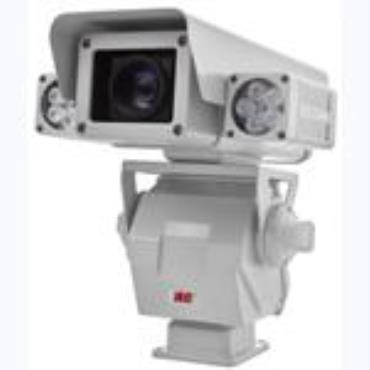

J-IP-8110-LR intelligent variable speed integrated equipment with inner decoder and RJ45 port,

Adopts aluminum alloy material, waterproof, heat-resistant and anti-corrosion

With the driving of high intensity geared motor, it can auto-scan and install inner heater

Supply voltage: PTZ DC 12V (±10%)

Exterior power supply: AC 22V transform to DC 12V 4A

Consumed power: PTZ ≤10W, white light ≤20W

Scan scale:

Pan: 0 to 360° continuously

Tilt: -70 to 20°

PTZ scan precision: 0.05°

Turn speed:

Pan: 0.8 to 35°/s

Tilt: 0.8 to 20°/s

Applicable temperature: -20 to 55°C

Address scale: 1

Presets: 255

Presets speed:

Pan: 20°/s

Tilt: 20°/s

Presets precision: ±0.05°

Baud rate: 9600bps

System: PAN/NTSC

Communication format: RS-485

Tilt maximum torque: 9Nm (state standard)

Output voltage: DC 12V (±10%)/3A

Maximum loading capacity: 5kg (state standard)

Protection grade: IP66

Weight: PTZ: 3.5kg, 2.5kg double-lamp housing
