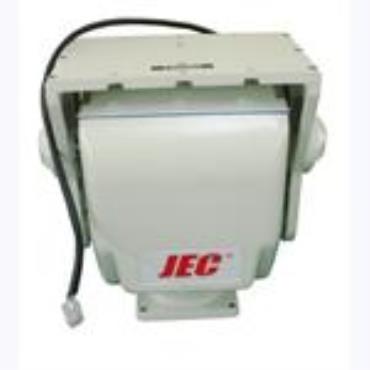

Weatherproof variable-speed IP PTZ with RJ45 port

Adapts DC brushless machine and drive mode of gear reducer

Multi-mast PTZ, flexible and convenient

Prompt response without lag

High intensity aluminum alloy casing

Technical parameters:

Input voltage: 24V AC (±10%), 50/60Hz

Power consumption: ≤60W

Turn angle:

Pan: 0 to 350 °

Tilt: -80 to 60 °

Turn limit: adjustable pan/tilt degrees

Turn speed:

Pan: 0 to 30 °/s

Tilt: 0 to 15 °/s

Presets: maximum of 128

Presets precision: 0.1 °

Communication format: RS-485

Communication protocol: Pelco-P and Pelco-D

Baud rates: 1200/2400/4800/9600bps

Control mode for housing: level control, UART and RS-485

Address: 1 to 255

Working temperature: -30 to 55°C

Maximum loading capacity: 15kg

IP66

Weight: 8.5kg
