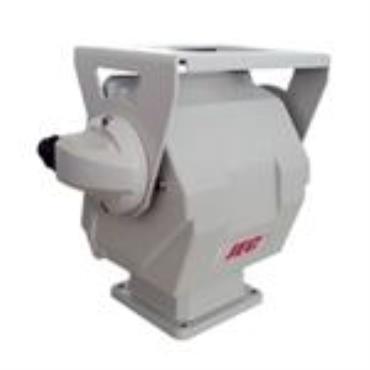

Mini IP Pan Tilt with RJ45 port

High-intensity Aluminium Alloy material,enhanced capability of impact resistance, shielding,heat dissipation.

Adopt Brush DC Motor and the drive mode of gear reducer, insure stability,prompt response, flexible operation,energy efficiency and environmental protection

Protection grade IP66, special surface treatment can meet three proofing requirements

Technical specification:

Input Voltage: PTZ:DC 12V(±10%）；Exterior Power:AC220V transform to DC12V 4A

Consumed power: ≤10W

Turn Scan Scale: 360°continuously pan, -70° ~ +20° in tilt

PTZ Scan Precision:0.05°

Turn Speed: Pan:0.8°~35° /s Tilt: 0.8°~20° /s

Applicable Temperature: -20° C ~ +55° C

Address Scale: 0~255

Network Interface:RJ45 port

Presets: Maximum 255

Presets speed: pan: 20° /s tilt:20° /s

Presets Precision: ±0.05°

Baud Rate:1200/2400/4800/9600 bps optional

System: PAN/NTSC

Communication Format: RS-485

Tilt Maximum Torque:9Nm (state standards)

Output Voltage: DC12V(±10%) /3A

Maximum Loading Capacity: 5kg (State standards)

Protection grade: IP66

Weight: 3.5Kg
