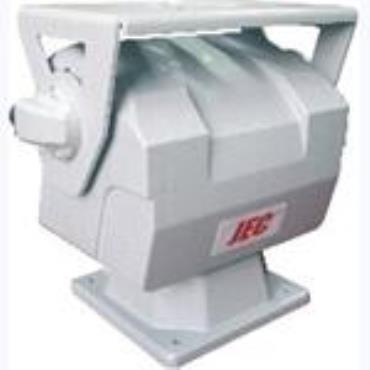

·High intensity aluminum alloy casing.waterproof,heat resistant,ageing resistance,

anti-corrosion.Designed for all-weather environment.

·Adopts DC brushless machine and the drive mode of gear reducer,insure stability,promote response,flexible operation,energy saving and Rohs,can use solar power for electricity.

Built-in intelligent decoder,high precision orientation,tour through presets in groups,realize the closed loop control of position velocity,no self-checking after power-on.

Auto routing inspection function

Auto scan function/Three-dimensional scan between two presets

With the data returning function,can be linked with other boot device

Multi-mast the PTZ, flexible,convenient.Prompt response without lag.

Pretection grade IP66,special surface treatment can meet three proofing requirements

Technical Data

Input voltage: AC24(±15%) 50/60Hz

Consumed power: ≤200W

Turn Angle: Pan: 0 to 360 degrees Tilt: -60 to+ 60 degrees

Turn Speed: Pan: 1-12 degrees/s Tilt: 0.5-6 degrees/s

Presets: Max 220

Presets Precision: ± 0.1 degree

Communicate Format: RS-485

Communicate Protocol: Pelco P,D

Baud Rate: 1200/2400/4800/9600BPS

Address: 1-255

Work Temperature: -30 - +55°C

Maximum Loading: 30kg

Weight: 14.5kg
