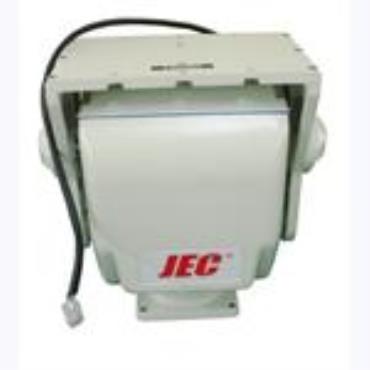

Weatherproof IP PTZ with RJ45 Port

High intensity aluminum alloy casing, waterproof, oven-resistant and cauterization-resistant.

Adopt DC brushless machine and the drive mode of gear reducer, insure stability ,prompt response, flexible operation ,energy saving and Rohs.

Built-in intelligent decoder,high-accuracy

Auto routing inspection function;auto scan function

Multi-mast the PTZ, flexible and convenient.Prompt response without lag.

Protection Grade IP66, special surface treatment can meet three proofing requirements

Technical Specification:

Input Voltage: AC24(±10%) 50/60Hz

Consumed Power: PTZ:≤60W;Tempreature controller:26W(optional)

Turn Angle: 0~ 360°continuously pan Tilt: -70°~ +20°

Turn Limit: Pan,Tilt degree adjustable

Turn Speed: Pan: 0.8~18°/S Tilt: 0.3~7°/S

Presets: Maximum 128

Presets Precision: 0.16°

Communicate Format: RS-485

Communicate Protocol: Pelco P,D

Baud Rate: 1200/2400/4800/9600BPS Optional

Network Interface:RJ45 port

Address: 0-255

Work Temperature: -30℃ ~ +55°C

Maximum Loading: 15kg

Weight: 8kg
