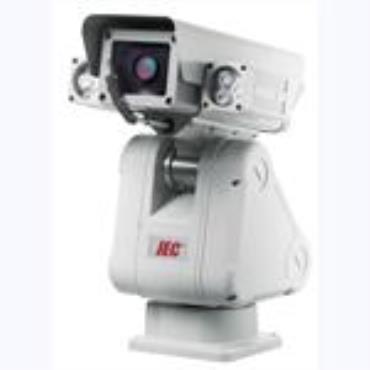

Designed for All-weather environment,Waterproof,heat-resistance, anti-aging

Adopts all aluminum alloy material,design of spherical shell,all component compact,high strength shell protection,good performance of heat dissipation

Adopts ROI,SVC and so on video compression technique

ICR infrared filter plate automatic switch, realize day and night monitor perfectly

Support through fog, anti electronic shake, restrain strong light, and has a variety of white balance mode

IP66 Rated

Features:

Adopts main system,camera,IR light module in disconnect-type casing protection design,good waterproof performance,high reliability

Adopts newest LED Array technique,high luminance,irradiate long distance,light field equal distributed,long serving life.

Adopts precision stepper motor driver,smooth operation, quick response, high accuracy of positioning

At night,colour auto turn to black,and open IR light

Adopts high performance DSP digital design,stable performance

Support many kinds of communication format and baud rate,High compatibility

Adopts EEPROM data storage mode,data will not lose when power is cut off

Presets number is 256,can call and set of any position,high accuracy of positioning

Support scan between two points

Support four group routing inspection,each group can store 32 presets

Technical data:

Camera data

Image sensor: 1/2.8" CMOS

Effective pixels:1920*1080

TVL: 1000 TVL (colour)/1200 TVL(black)

Video standard: PAL/NTSC

Low illumination: Color: 0.05 Lux @ F1.6/Black and white: 0.005 Lux @ F1.6

Gain control: auto/manual

SNR:> 50 dB (AGC Off，Weight ON)

White balance: auto /manual /track /outdoor /indoor /outdoor auto /sodium lamp auto/ sodium lamp

Focal length:f=4.7mm~94mm F1.6(Wide)~F3.5(Tele)

Zoom: 20X optional zoom

FOV: pan:55.4~2.90

Digital zoom:16X

Electronic shutter:1/1~1/30000

BLC: ON/OFF

IRIS control:auto/manual

WDR:support

DNR:support

Day night mode:optical filter colour to black

Function

System resouce: support real time network monitoring,local video and remote operation

Users port:WEB,DSS,PSS and so on remote operation interface

Video resolution: main stream (1920*1080),auxilary stream (D1)

Power off memory:support

Audio compression standard: G.711A/G.711Mu/PCM

Network protocol:Support HTTP/TCP/IP/UDP/DNS/DDNS/PPPOE and so on

Input and Output

Analog Video output:1.0Vpp/75Ω,NTSC or PAL,BNC port

Audio input:1 route,3.5mm JACK MIC IN

Audio output:1 route,3.5mm JACK SPEAK OUT

Alarm port:2 route input,1 route output (switching value)

Wired network:1 route 10/100 Ethernet,Rj45 port

Pan Tilt

Turn angle: Pan: 360° continously; Tilt:-60°~30°

Turn speed: Pan:0.1°~60°/s (32 grade speed optional)

Coordinate preset: 256

Preset precision:±0.16°

Communcation format:RS-485

Communcation protocol:Pelco-D/P protocol

Baud rate:1200/2400/4800/9600bps optional

Left and right Scan:any two points can be setted (32 grade speed optional)

Patrol scan: four group/each group 32 presets/no point dwell time can be setted

IR light control and effect

IR light effect:two group of array IR light/illuminate distance can reach 120m

Brightness control:manual/auto

Start control:auto/manual

General norms

Protection grade:IP66

Install environment:Outdoor

Working temperature:-20℃-＋50℃,humidity <90% (non-condensing)

Supply voltage:AC 24V(±10%) 50/60 Hz

Consumed power: 127W

Dimension:L*W*H:353mm×251.6mm×392.6mm

Weight:11kg

Material:Alumimum alloy
