Reliable and affordable electric half height turnstile gate, half height rotor turnstiles, half height security turnstile coming from Chinese automatic turnstiles manufacturer & supplier

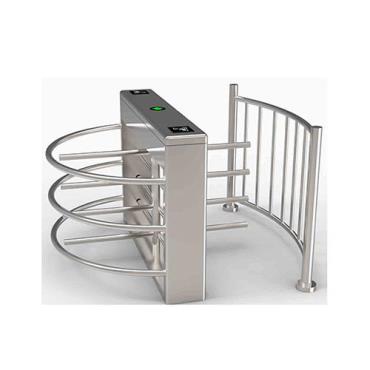

Half height turnstile gate JDHHT-1 offers an elegant and compact crowd control solution at entrance with high pedestrian traffic flow for any locations requiring effective crowd management such as athletic facilities, cafeterias, amusement parks, stadiums, office buildings. Half height security turnstile JDHHT-1 is reliable, fast and easy to use, and provides smooth, precise, quiet, controller, fast arm rotation by using advance digital positioning technology. Meanwhile, half height rotor turnstile JDHHT-1 is simplified integration to access control and visitor management systems such as facial reconition, barcod, fingerprint and QR scanner.

Waist height security turnstile JDHHT-1 provides single directional or bi-directional access according to actual requirements. The passage will be relased upon the reception of a a valid credential signal, electric half height turnstile gate JDHHT-1 will lock the passage immediately after the passing completed or after the predetermined time. Upon loss of power or fire system input, the passage Is released to provide a clear exit passageway

Featurers

1. Available in both one-way and two-way access control.

2. Easily integrates with almost any access control system

3. Free access under power failure

4. Easy, safe and fast to use

5. Easy installation and field-configurable

6. Easily change turnstile passage mode

7. Durable construction suitable for outdoor use in all weather conditions

8. Automatic self-centering prevents over or under travel of rotating section

9. Full height for maximum security

10. Free egress in emergencies or loss of power

Applications

Government

Park

School

Residential area

Office building

Metro terminal

Factory

Parameters

Housing Material: #304 stainless sheet

Dimension: 1400 x 1150 x 1250mm

Power Supply: AC220V / AC110V, 50/ 60 Hz

Channel Width: 600mm

IP Rate: IP45

Pass Speed: 30 ~35 persons per minute

Input Interface: Dry contact signal or +12V level signal or DC12V pulse signal

Rotating Direction: Bi-directional

Communication interface: RS485

Gate open when power failure: Yes

Open Time: 0.2 second

Life Cycle: 5 million times

Working Temperature: -30°C~+70°C, Relative Humidity: ≤90%, no condensation

Working Environments: Indoor, outdoor (with shelter)
