Crowd control full height turnstile, full height security turnstile access control, automatic full height turnstile gate is reliable with good performance of tailgating protection

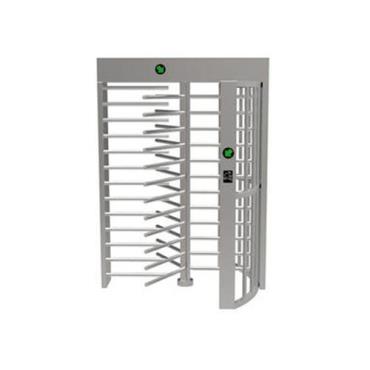

Crowd control full height turnstile JDFHT-3 is a full-height security solution to mitigate tailgating and handle moderate throughput by controlling access to various facilities and enclosures, any illegal intrusion or tailgating attempts will activate a alarm, which supports anti-collision function by which access control turnstile will be locked automatically when the opening signal is not received. The access control full height turnstile JDFHT-3 is easy to use and maintenance, and automatically detect whether the gate is in the initial position.

Crowd control full height turnstile JDFHT-3 is available in both one-way and two-way access control, and supports automatic reset function. After opening the gate, the automatic full height turnstile will automatically cancel the access rights of pedestrians when they do not pass within the specified time. In addition, the passage will be released for free passing in case of power failure or emergency.

Crowd Control Full Height Turnstile Features

1. Available in both one-way and two-way access control

2. Easily integrates with almost any access control system

3. Free access under power failure

4. Easy, safe and fast to use

5. Easy installation and field-configurable

6. Easily change turnstile passage mode

7. Durable construction suitable for outdoor use in all weather conditions

8. Automatic self-centering prevents over or under travel of rotating section

9. Full height for maximum security

10. Free egress in emergencies or loss of power

Crowd Control Full Height Turnstile Applications

Industrial plants

Company premises

Power plants

Parking sites

Bike parks

Military installations

Crowd Control Full Height Turnstile Parameters

Housing Material: #304 stainless sheet

Dimension: 1600 x 1350 x 2300mm

Power Supply: AC220V / AC110V, 50/ 60 Hz

Channel Width: 600mm

IP Rate: IP45

Pass Speed: 30 ~35 persons per minute

Input Interface: Dry contact signal or +12V level signal or DC12V pulse signal

Rotating Direction: Bi-directional

Communication interface: RS485

Gate open when power failure: Yes

Open Time: 0.2 second

Life Cycle: 5 million times

Working Temperature: -30°C~+70°C, Relative Humidity: ≤90%, no condensation

Working Environments: Indoor, outdoor (with shelter)
