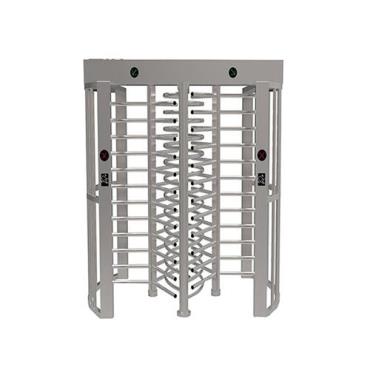

Tandem full height turnstile gate, full height rotor turnstiles, full height security turnstile flexibly integrates any type of access control systems

Tandem full height turnstile gate JDFHT-2, acting as an effective full height security solution, ensures vandal proof security level to large variety of possible applications: stadiums, factories, parks, premises with highest security requirements. Unauthorized entries or attempts to tailgate on an authorized entry are deterred and activate the alarm. Full height tandem turnstile JDFHT-2 allows free access under power failure which is in strict compliance with fire safety requirements. Meanwhile, access control full height turnstile JDFHT-1 Is fast, relable and east to use and maintain.

Tandem full height turnstile gate JDFHT-2 operates silently in a reliable way and can be easily integrated with any access control systems to allow only one person per authorized credential. Full height automatic turnstile JDFHT-2 will automatically cancel the access rights of pedestrians when they do not pass within the specified time. Finally, both one-way and two-way access control are available with full height motorized turnstile JDFHT-2.

Tandem Full Height Turnstile Gate Features

1. Available in both one-way and two-way access control

2. Easily integrates with almost any access control system

3. Free access under power failure

4. Easy, safe and fast to use

5. Easy installation and field-configurable

6. Easily change turnstile passage mode

7. Durable construction suitable for outdoor use in all weather conditions

8. Automatic self-centering prevents over or under travel of rotating section

9. Full height for maximum security

10. Free egress in emergencies or loss of power

Tandem Full Height Turnstile Gate Applications

Industrial plants

Company premises

Power plants

Parking sites

Bike parks

Military installations

Tandem Full Height Turnstile Gate Parameters

Housing Material: #304 stainless sheet

Dimension: 2500 x 1350 x 2300mm

Power Supply: AC220V / AC110V, 50/ 60 Hz

Channel Width: 600mm

IP Rate: IP45

Pass Speed: 30 ~35 persons per minute

Input Interface: Dry contact signal or +12V level signal or DC12V pulse signal

Rotating Direction: Bi-directional

Communication interface: RS485

Gate open when power failure: Yes

Open Time: 0.2 second

Life Cycle: 5 million times

Working Temperature: -30°C~+70°C, Relative Humidity: ≤90%, no condensation

Working Environments: Indoor, outdoor (with shelter)
