Full height dual lane rotor turnstile, outdoor full height turnstiles, full height security turnstile is easy to use and maintain while provides high security

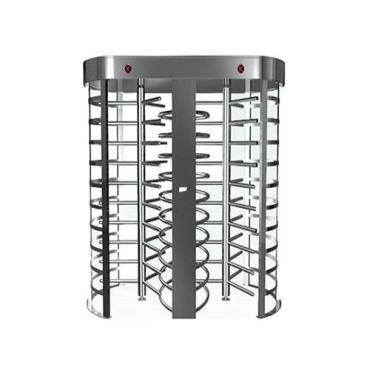

Full height dual lane rotor turnstile JDFHT-1 is a full-height security solution to mitigate tailgating and handle moderate throughput by controlling access to various facilities and enclosures, any illegal intrusion or tailgating attempts will activate a alarm, which supports anti-collision function by which access control turnstile will be locked automatically when the opening signal is not received. Dual lane full height rotor turnstile JDFHT-1 is easy to use and maintenance, and automatically detect whether the gate is in the initial position.

Full height dual lane rotor turnstile JDFHT-1 is available in both one-way and two-way access control, and supports automatic reset function. After opening the gate, the full height rotor turnstile will automatically cancel the access rights of pedestrians when they do not pass within the specified time. In addition, the passage will be released for free passing in case of power failure or emergency.

Full Height Dual Lane Rotor Turnstile Features

1. Available in both one-way and two-way access control

2. Easily integrates with almost any access control system

3. Free access under power failure

4. Easy, safe and fast to use

5. Easy installation and field-configurable

6. Easily change turnstile passage mode

7. Durable construction suitable for outdoor use in all weather conditions

8. Automatic self-centering prevents over or under travel of rotating section

9. Full height for maximum security

10. Free egress in emergencies or loss of power

Full Height Dual Lane Rotor Turnstile Applications

Industrial plants

Company premises

Power plants

Parking sites

Bike parks

Military installations

Full Height Dual Lane Rotor Turnstile Parameters

Housing Material: #304 stainless sheet

Dimension: 2530 x 1450 x 2300mm

Power Supply: AC220V / AC110V, 50/ 60 Hz

Channel Width: 600mm

IP Rate: IP45

Pass Speed: 30 ~35 persons per minute

Input Interface: Dry contact signal or +12V level signal or DC12V pulse signal

Rotating Direction: Bi-directional

Communication interface: RS485

Gate open when power failure: Yes

Open Time: 0.2 second

Life Cycle: 5 million times

Working Temperature: -30°C~+70°C, Relative Humidity: ≤90%, no condensation

Working Environments: Indoor, outdoor (with shelter)
