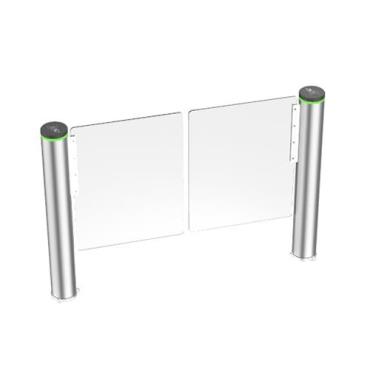

Swing arm optical turnstile, cylinder swing barrier gate turnstile designed with small footprint providing a comfortable means of access for the disabled and large deliveries

Swing arm optical turnstile JDBZ-22 is designed for the entry control solution maintaining security while providing a comfortable means of access for the disabled and large deliveries, and mostly used as an addition to installed tripod turnstiles or waisit-high optical turnstiles in order to ensure availability of wide passage for special requirements. Adopting the slimmest column design with stylish and modern look, cylinder swing barrier gate turnstile JDBZ-22 provides a low impact access control solution for any architectural environment. On the other hand, waist-high swing turnstile JDBZ-22 comes with high-accuracy positioning sensor by which ensures proper synchronization of operation of two swing gates installed together and controlled with one signal.

Optical swing arm turnstile JDBZ-22 operates in a fast, accurate, stable and quiete way with low-noise, low-power consumption, and a longer service life. Meanwhile, swing barrier turnstile JDBZ-22 provides single directional or bi-directional access and easily integrate any access control systems or device with dry contact output.

Swing Arm Optical Turnstile Features

1. Smooth and fast opening of barriers

2. Solution for disabled and trolley access

3. Free egress in emergencies or loss of power

4. Quick and precise panel movement and alignment

5. Motorized panels open quickly and smoothly away from the user

6. Slim cabinet allows optical turnstile use in compact spaces

7. Upscale look suitable for any premium lobby

8. Run more smoothly and stop quickly after being blocked

9. Streamlined design with a more modern aesthetic

10. Adopt more reasonable electric control and layout to improve the protection level

Swing Arm Optical Turnstile Applications

Subway

Large venues

Stadium

Commercial buildings

Fitness center

Swing Arm Optical Turnstile Parameters

Housing Material: #304 stainless sheet

Dimension: 140 x 140 x 1050mm

Power Supply: AC220V / AC110V, 50/ 60 Hz

Channel Width: 600~900mm

Drive Motor: servo motor

Pass Speed: 30 ~35 persons per minute

Input Interface: Dry contact signal or +12V level signal or DC12V pulse signal

Rotating Direction: Bi-directional

Communication interface: RS485

Gate open when power failure: Yes

Open Time: 0.2 second

Life Cycle: 5 million times

Working Temperature: -30°C~+70°C

Working Environments: Indoor, outdoor (with shelter)
